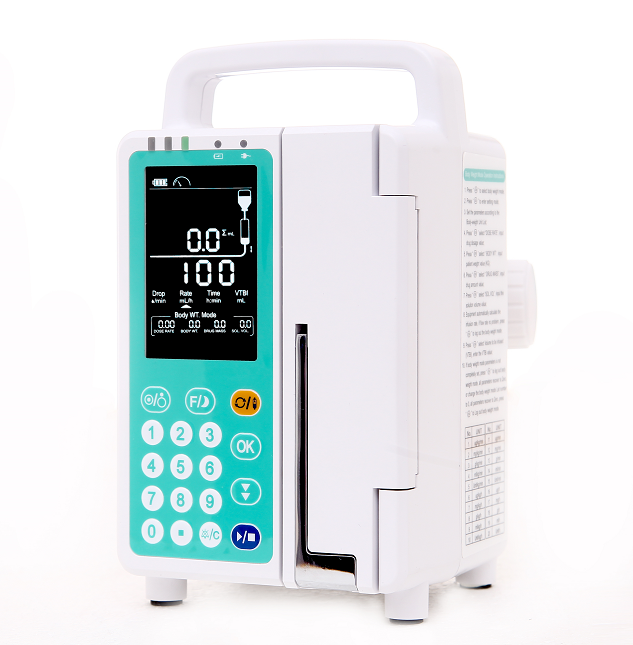

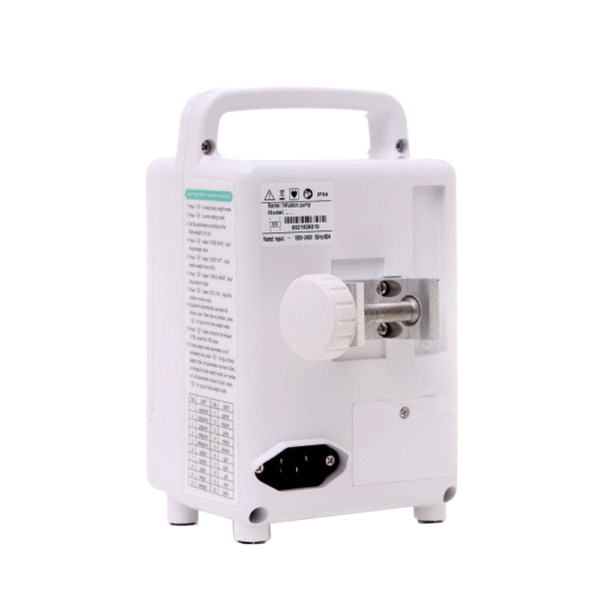

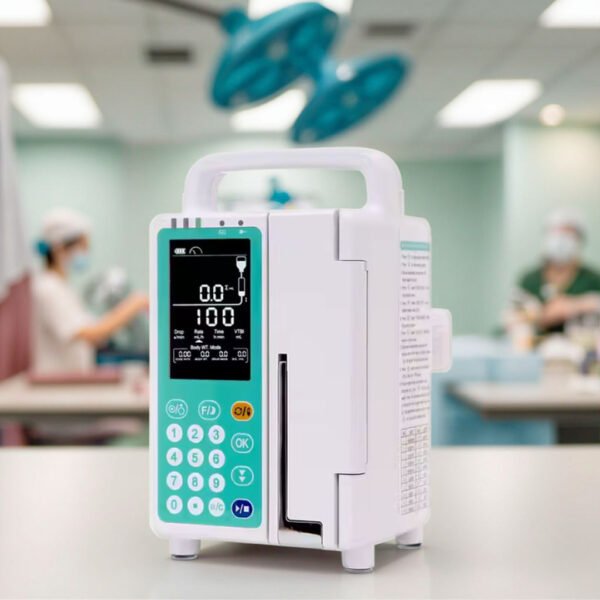

IPA112 Portable Medical Infusion Pump

1. 3.5 inch LCD screen for clear vision within 5 meters
2. One-button night mode design for patient’s more comfortable rest at night
3. Rate,Time-Rate,Volume-Rate,Time-Drop,Volume-Drop,Time-Volume to satisfy different clinical choices
4. 5 different brands of I.V sets can be calibrated and customized into the system

Product Description

Portable Fingertip Peristaltic Drug Volumetric Infusion Pump

Infusion Principle		Fingertip Peristaltic Pump
I.V.Set Compatibility		Open System, match all brands of qualified PVC,TPE I.V.sets with external diameter of 3.8mm-4.2mm
Range of Flow Rate		0.1-1200ml/h
Infusion Mode		Rate, Rate-Time, Rate-Volume, Time-Volume, Drop-Volume, Drop-Time, Body Weight
Drug Library		20 drug list with drug code display
Purge/Bolus Rate		1-1200ml/h,default 800ml/h, step by 1ml/h
Single Bolus Volume		1.0-10ml Adjustable, default 3 ml
Time Preset		00: 01~99: 59 （Hour: Min）
Volume Range		1~9999ml
Drop Range		1-400d/min, step by 1 drop
Accuracy		±5%
Total Volume Infused		0-9999 ml
Occlusion	High	40 KPa±20KPa
Pressure	Middle	60 KPa±20KPa
	Low	100KPa±20KPa
Air in line Detection		Ultrasonic wave
Visible & Audible Alarms		Air in line, Down Stream Occlusion, Door Open, VTBI Completion, Near Completion, Low Battery, Battery Exhausted, Low Temperature,
		Motor Malfunction, A.C Disconnection, A.C connection, I.V set dislocation, MPU Error, Battery Charging, Battery Charging
		Completion,
		Circuit Malfunction
K.V.O Rate		1ml/h-5ml/h, default value 1ml/h, can be programmed by user step 0.1ml/h
Internal Battery		Lithium battery, 11.1/2000mAh, more than 4 hours working back up
Power Consumption		30VA
Power		AC 100V-240V 50HZ/60HZ
Classification		Class II, Type CF, IPX4
Dimension & Weight		13×17.5×23 cm;2Kg

FAQ

1. Are you a manufacture or trader ?
—-We are a professional manufacture , we have our own produce team and sales team, we also provide one-stop service.
2. What’s your MOQ ?
—-For this product, MOQ is 1 unit.
3. How long is the warranty time ?
—-We supply 12 months warranty time ,during this time we will help you solve any problems.
4. Do you provide OEM/ODM Service ?
—-Yes, we provide this service to meet different requirements , different budget to all clients.
5. How are we going to install the equipment after purchasing ?
—-We will provide user manual comes with machine ,also professional installation video to help you .
6.What payment terms you support ?
—-We accept T/T, credit card ,Visa card, Paypal etc.
7. What is your delivery time ?
—-It depend on your qty,if we have it in stock ,we can ship in 3 days after receive deposit ,if we don’t have it in stock,normally production time is 7-10 working days .
8. Do you have CE and ISO certificate ?
—-Yes, most of our products have the CE and ISO certificate
