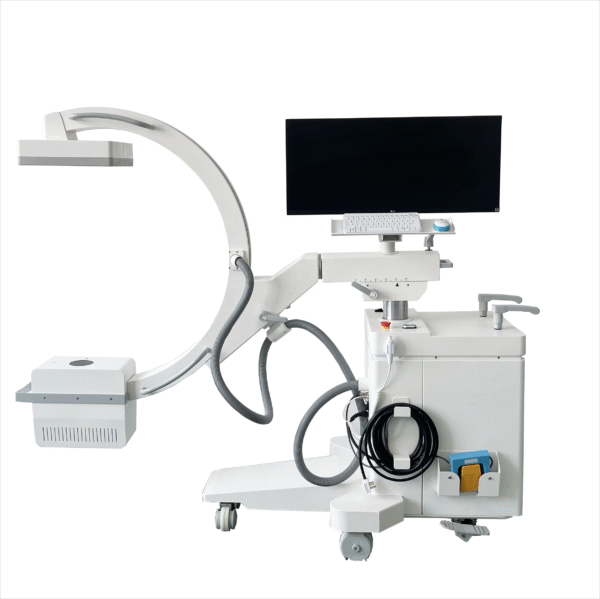

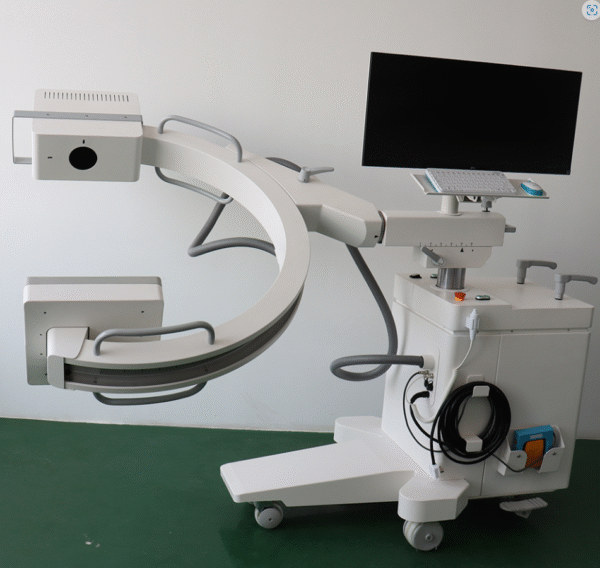

SNC-5kW Medical Mobile Digital C-arm X-ray Machine

Powerful mobile C-arm machine designed for a wide range of applications in orthopedics, neurosurgery, pain management, and emergency room. With high frequency generator, it offers fine definition image with low dose. It brings to our users with unparalleled experience for operation when using the C-arm for orthopedic surgery and intervention operation.

Category: C-arm

Product Description

Mobile Digital Radiology X-ray Machine Mobile C-arm X-ray Machine

Model	MTC-5kW
Ambient Conditions
Ambient temperature	10℃～40℃
Relative humidity	30％～75％
Atmospheric	70～106kPa
X-ray Generator
Output power	5KW
Current of fluoroscopy	0.3-6.3mA
Current of radiography	0.1-100mA
Pulsed mA	32mA
Voltage	40kV-125kV
mAs range	0.2-100mAs
ms range	10-1600ms
X-ray Tube
Anode type	Rotating Anode
Focal Spot value	0.3mm /0.6mm
Rotating anode speed	2800rmp
Anode heat storage	300KHU
Housing Heat Storage Capacity	1200KHU
Flat-panel Detector
Size	21*21cm
Detector Technology	Amorphous Silicon
Scintillator	CsI
Image resolution	2.5lp/mm
Frame rate	MAX 30frames/sec
Active pixels	1024*1024 pixels
A/D conversion	16 bit
Pixel Pitch	205 μm
Faster image capture speed	The image will be displayed on the monitors in 0.8S after exposure.

FAQ

1. Are you a manufacture or trader ?
—-We are a professional manufacture , we have our own produce team and sales team, we also provide one-stop service.
2. What’s your MOQ ?
—-For this product, MOQ is 1 unit.
3. How long is the warranty time ?
—-We supply 12 months warranty time ,during this time we will help you solve any problems.
4. Do you provide OEM/ODM Service ?
—-Yes, we provide this service to meet different requirements , different budget to all clients.
5. How are we going to install the equipment after purchasing ?
—-We will provide user manual comes with machine ,also professional installation video to help you .
6.What payment terms you support ?
—-We accept T/T, credit card ,Visa card, Paypal etc.
7. What is your delivery time ?
—-It depend on your qty,if we have it in stock ,we can ship in 3 days after receive deposit ,if we don’t have it in stock,normally production time is 7-10 working days .
8. Do you have CE and ISO certificate ?
—-Yes, most of our products have the CE and ISO certificate
