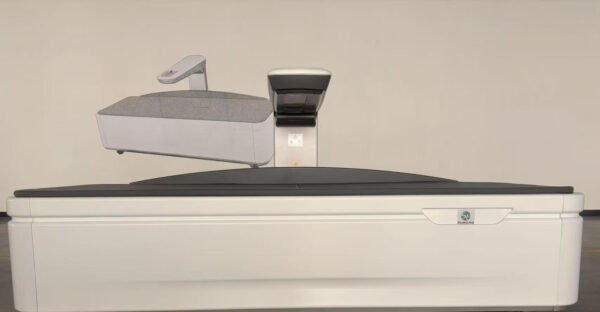

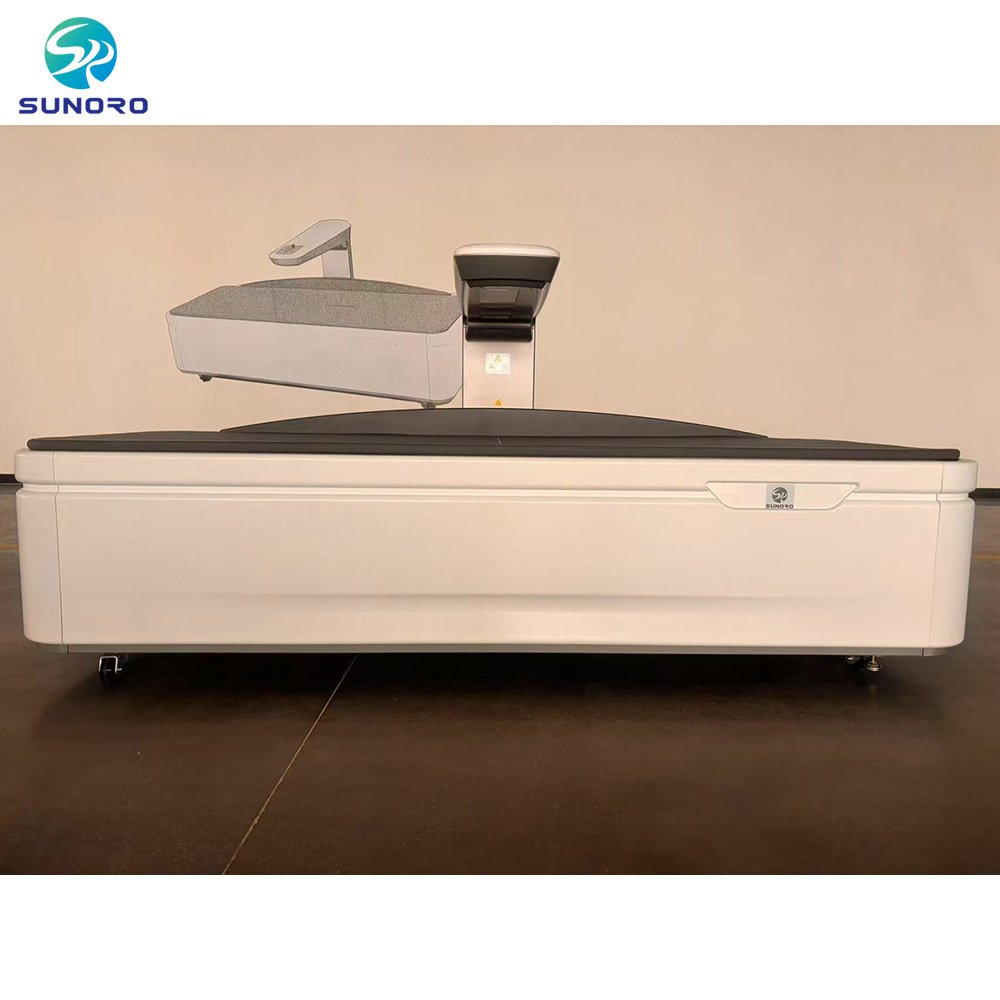

SR-A1 Dual-Energy X-ray Absorptiometry Whole Body Assessment Bone Densitometer

1. Combined head:
Tube voltage: fixed 76KV; Tube current: fixed 0.15mA、1mA;
Nominal output power: 76W; Maximum output power: 76W;
Focal point: 0.5mm; Target material: tungsten; Tube assembly heat capacity: 35.5kJ;
2 、Beam-limiting scanning device:
Opening size: 2.5mm x 15mm
3 、Detector:
Type: CZT; Effective field size: 64.50mm x 6.07mm
4 、Examining table
Length x width x height : 2720 x 1094 x 1322mm

Product Description

Dual-Energy X-ray Absorptiometry Bone Densitometry Scan Orthopedic Use Bone Densitometry

X- ray unit	High energy and low energy X-ray Bone Densitometer
Scanning mode	Sector beam scanning
Measurement parts	Lumbar spine, Femur, Forearm and Lateral spine
Tube voltage range	40-80KV
Tube current range	0.15mA、1mA
Focus	0.5mm
Type of detector	CZT detector
Software function	Spine assessment analysis
	Scan measurement of the anterior spine, characteristic LVA lateral spine
	Femur assessment analysis
	Measure the bone mineral density of the femur, analyze the structure of the femur FMSA
	FNW
	UFN-BMD
	Auto ROI:
	Automatically distinguish ROI (region of interest) after measurement
	English interface for operation
	Automatically generate images and data reports
Measurement time	42 seconds for lumbar spine, 31 seconds for femur, 30 seconds for forearm
Positioning	Laser positioning
Calibration	QA Phantom
Reference database	Standard data for Asians, Europeans, Americans,
Reference database	Middle Easterners, and Africans

FAQ

1. Are you a manufacture or trader ?
—-We are a professional manufacture , we have our own produce team and sales team, we also provide one-stop service.
2. What’s your MOQ ?
—-For this product, MOQ is 1 unit.
3. How long is the warranty time ?
—-We supply 12 months warranty time ,during this time we will help you solve any problems.
4. Do you provide OEM/ODM Service ?
—-Yes, we provide this service to meet different requirements , different budget to all clients.
5. How are we going to install the equipment after purchasing ?
—-We will provide user manual comes with machine ,also professional installation video to help you .
6.What payment terms you support ?
—-We accept T/T, credit card ,Visa card, Paypal etc.
7. What is your delivery time ?
—-It depend on your qty,if we have it in stock ,we can ship in 3 days after receive deposit ,if we don’t have it in stock,normally production time is 7-10 working days .
8. Do you have CE and ISO certificate ?
—-Yes, most of our products have the CE and ISO certificate
