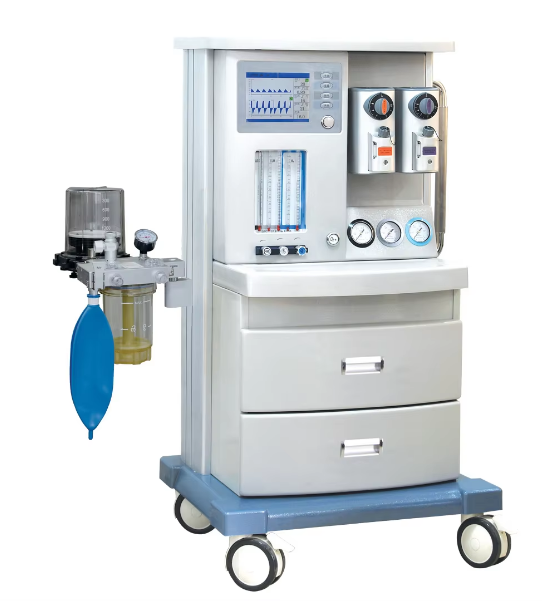

SR-A500B Portable Anesthesia Machines Are Versatile Anesthesia Equipment

This SR-A500B Anesthesia Machine is equipped with an accurate dedicated anaesthetic vaporizer and a safety device for preventing cyanosis and necessary alarm system. During the anesthesia, the patient’s respiratory functions can be managed by using a microcomputer controlled pneumatic electrically controlled synchronizing anesthesia respirator. Each connection part of the whole machine is a standard interface. A highly efficient and large volume soda lime absorber can minimize the re-inhalation of carbon dioxide by the patient.

Product Description

Portable Hospital Surgical Anaesthesia Equipment Human & Veterinary Anesthesia Machine

Physical specifications
Screen	8.4 / 10.4 inch LCD Display Screen
Suitable	Adult & Child
Mode	pneumatically powered and electrically controlled system
Working Mode	Closed; Semi-Closed; Semi-Open
Circuit	Breathing circuit integrated standards

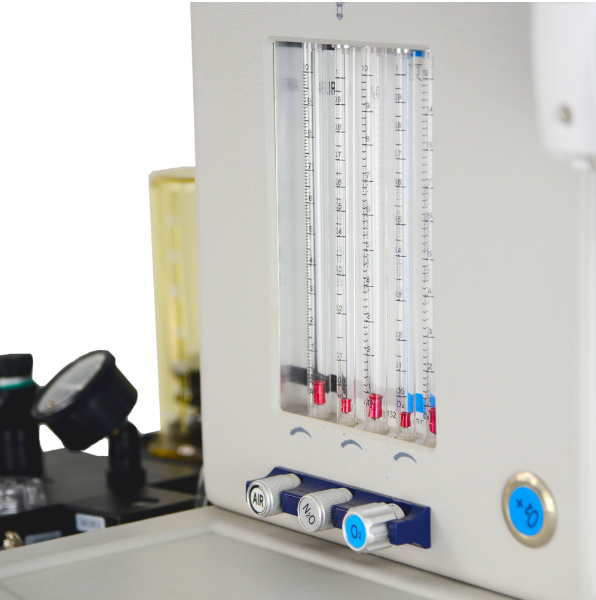

Flowmeters	5 Tubes Flowmeters: O2:0.1~10L/Min, N2O:0.1~10L/Min; Air: 0.1~10L / Min
Trolley	Fitted with 4 nos anti-static rubber castors; two of which are lockable for braking and easy maneuverability with foot operated brake provisions
Drawer unit	TWO drawers totally extractable
Technical Specifications
Gas requirement	Medical oxygen and nitrous oxide with a pressure ranging from O2: 0.32~0.6MPa; NO2: 0.32 MPa to 0.6 MPa.
safety valve	<12.5 kPa
Respiratory Rate	1~99bpm
oxygen concentration in the mixed gas N2O/O2	> 21%
Oxygen Flush	25~75 L/min
Modes of ventilation	A/C, IPPV, SIPPV, IMV, SIMV, PCV, VCV, PEEP, SIGH, PEEP, MANUAL
PEEP	0 ~ 20 hPa
Ptr	-10 ~ 20 hPa
IMV frequency	1 ~ 20 bpm
I/E Ratio	8:1 ~ 1:10, Has the inverse ratio ventilation
Tidal Volume	0 ~ 1500 ML
Inspiratory Plateau	0~1s
O2 Concentration	21%~100%
Sigh	one deep breath per 70 ~ 120 controlled respirations, the inspiration time is 1.5 times of the setting point
Maximum safety pressure	≤ 12.5 kPa
Pressure limit range	0 ~ 6.0 kPa
Airway pressure alarm: Audible and visual and with yellow and red color indicating	Lower: 0.2kPa~5.0kPa; Upper: 0.3~6.0 kPa
	±0.2 kPa
Tidal volume alarm: Audible and visual and with yellow and red color indicating	upper alarm: 50 to 2000ml, lower alarm: 0~1800ml
Oxygen concentration alarm: Audible and visual and with yellow and red color indicating	upper alarm: 21% ~100%; lower alarm:10%~80%
Power Supply Alarm	Ac/dc power supply are after failing to send out alarm immediately
	Alarm Time: keep >120s
The airway pressure continues to be higher than 15 hPa ±1 hPa for 15s±1s, then the machine will raise an audible alarm, the pressure will be displayed in red and the continuous high pressure red alarm wording is displayed on the screen of the anesthetic respirator.
Safty & Alarm
Oxygen Alarm	It alarms when the oxygen supply from pipe or cylinders lower than 0.2MPa
Ventilation Volume Alarm	Lower: 0~12L/Min; Up: 18L/ Min
Power Alarm	It Alrmas while AC and DC supply failure; Keep alraming time: >120s
Air Tract Pressure Alarm	Lower: 0.2kPa ~5.0 kPa; Up: 0.3kPa ~ 6.0kPa

FAQ

1. Are you a manufacture or trader ?
—-We are a professional manufacture , we have our own produce team and sales team, we also provide one-stop service.
2. What’s your MOQ ?
—-For this product, MOQ is 1 unit.
3. How long is the warranty time ?
—-We supply 12 months warranty time ,during this time we will help you solve any problems.
4. Do you provide OEM/ODM Service ?
—-Yes, we provide this service to meet different requirements , different budget to all clients.
5. How are we going to install the equipment
after purchasing ?
—-We will provide user manual comes with machine ,also professional installation video to help you .
6.What payment terms you support ?
—-We accept T/T, credit card ,Visa card, Paypal etc.
7. What is your delivery time ?
—-It depend on your qty,if we have it in stock ,we can ship in 3 days after receive deposit ,if we don’t have it in stock,normally production time is 7-10 working days .
8. Do you have CE and ISO certificate ?
—-Yes, most of our products have the CE and ISO certificate
