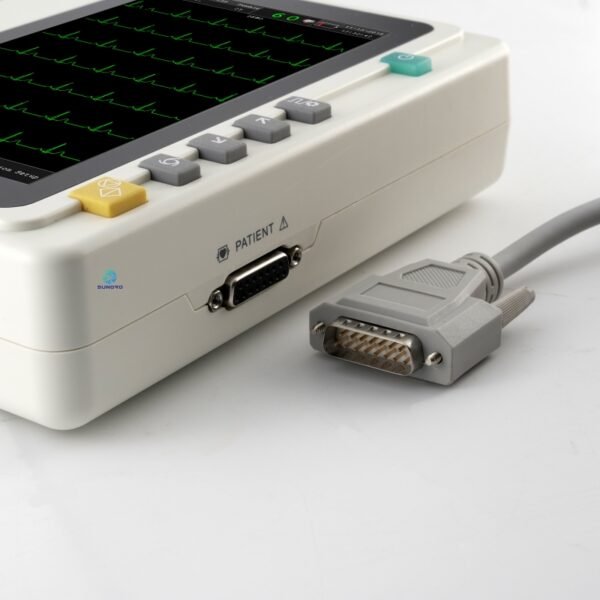

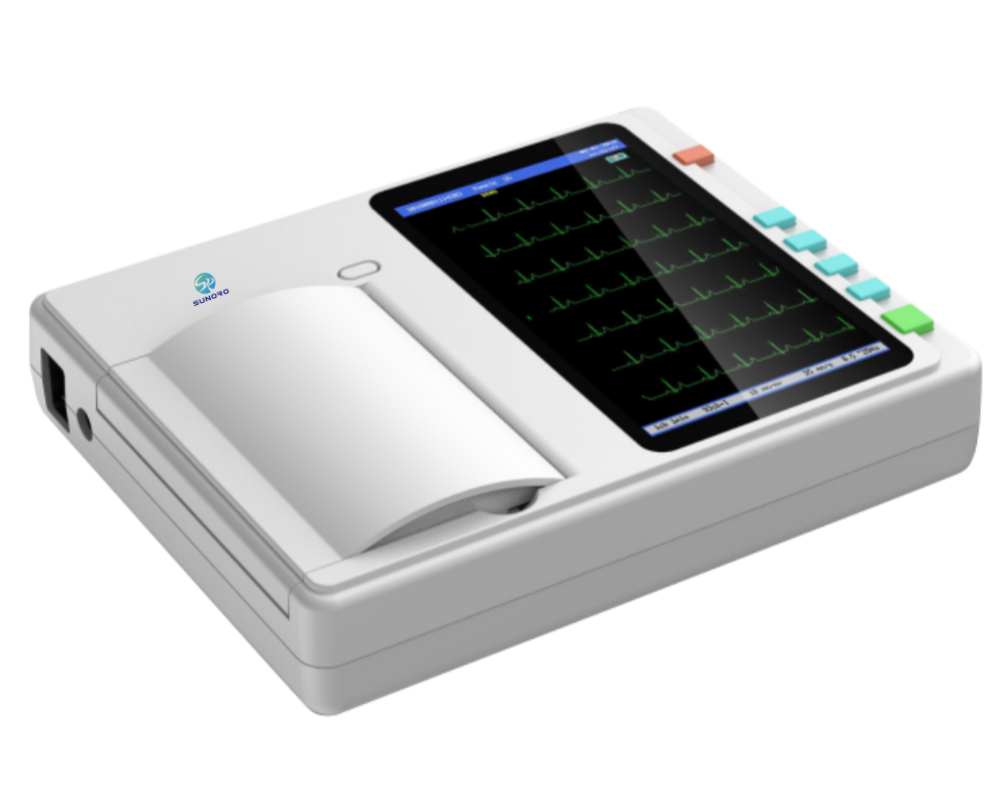

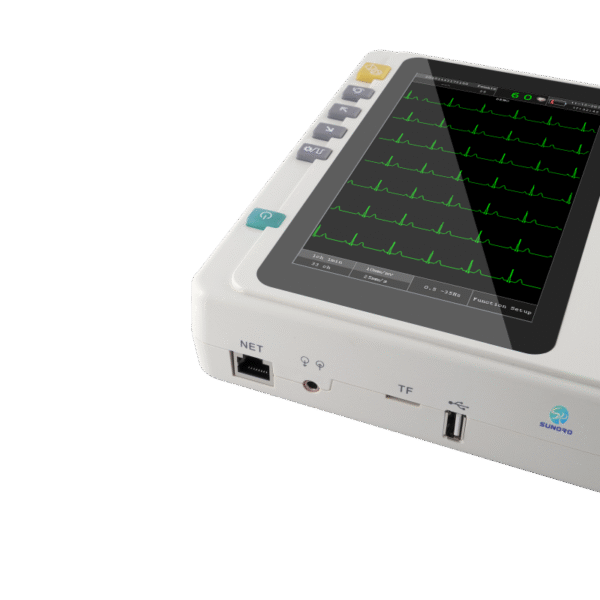

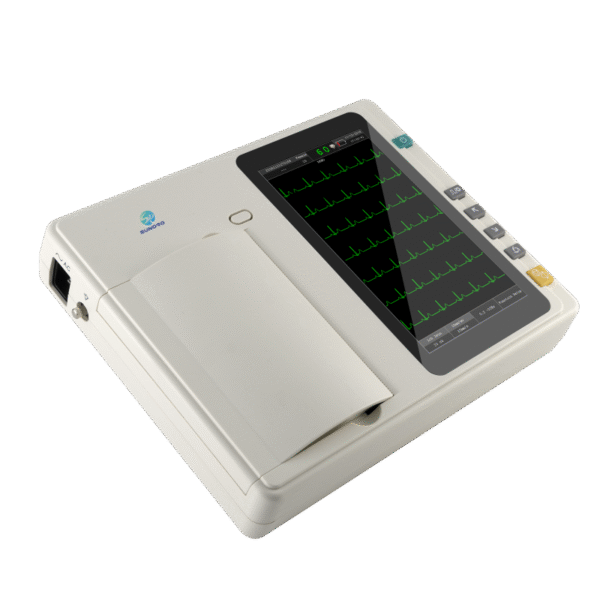

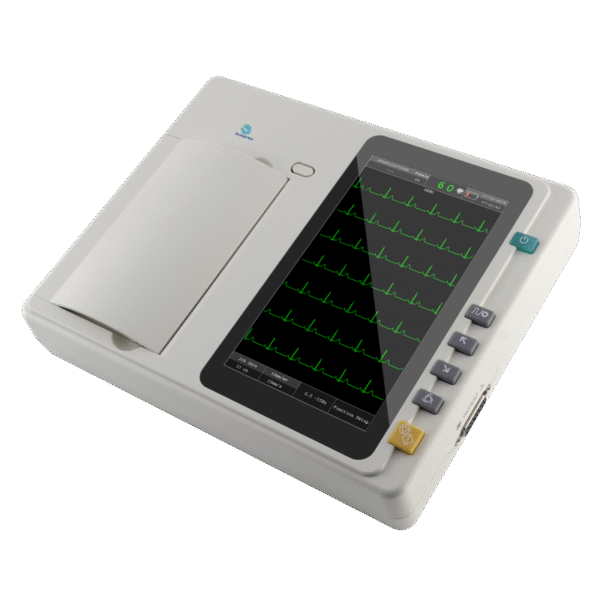

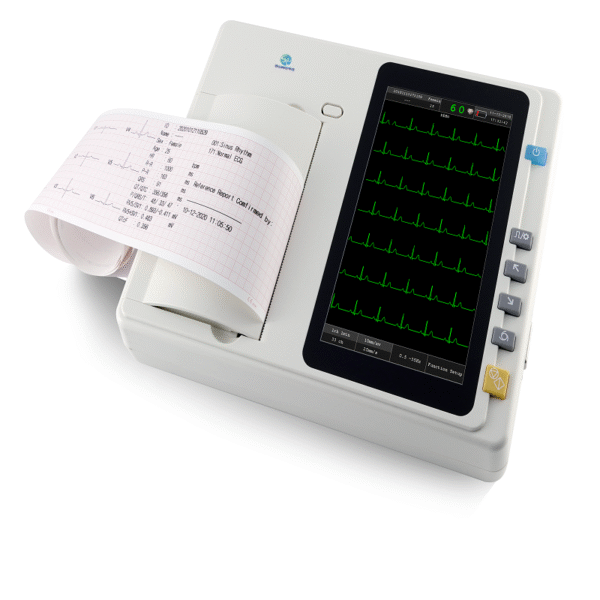

SR-C301 Digital Ecg Machine 12 Leads 6channel Ekg Color Lcd Emergency Ecg

3 channels 7 inch high resolution color touch screen
12-lead simultaneous acquisition and display
ECG Automatic measurement and interpretation function Complete digital filters, resisting baseline drift, AC and EMG
interference Compact and lightweight design Support USB flash disk and micro SD card to extend memory
Built-in rechargeable Li-ion battery 1850mAh.

Category: ECG

Product Description

Electrocardiogram Machine Electrocardiogram Monitoring

Items	Specification
Lead	Standard 12 leads
Acquisition Mode	Simultaneous 12 leads acquisition
Input circuit	Floating; Protection circuit against Defibrillator effect
Record mode	Automatic: 3CH×4+1 R, 3CH×4, 3CHx2+2CHx3,3CHx2+2CHx3+1 R,6CHX2;
	Manual: 3CH, 2CH, 3CH+1R, 2CH+1R;_
	Rhythm: Any lead selectable.
Filter	EMG Filter: 25 Hz/30 Hz/40Hz/75 Hz/100 Hz/150Hz
	DFT Filter: 0.05 Hz/0.15 Hz
	AC Filter: 50Hz/60Hz
CMRR	＞100dB
Patient leak current	＜10μA (220V-240V)
Frequency Response	0.05Hz〜150Hz (-3dB)
Sensitivity	2.5mm/mV, 5 mm/mV, 10 mm/mV, 20 mm/mV (error:±5%)
Anti-baseline Drift	Automatic
Time constant	≥3.2s
Noise level	＜15μVp-p
Paper speed	12.5 mm/s, 25 mm/s, 50 mm/s

FAQ

1. Are you a manufacture or trader ?
—-We are a professional manufacture , we have our own produce team and sales team, we also provide one-stop service.
2. What’s your MOQ ?
—-For this product, MOQ is 1 unit.
3. How long is the warranty time ?
—-We supply 12 months warranty time ,during this time we will help you solve any problems.
4. Do you provide OEM/ODM Service ?
—-Yes, we provide this service to meet different requirements , different budget to all clients.
5. How are we going to install the equipment after purchasing ?
—-We will provide user manual comes with machine ,also professional installation video to help you .
6.What payment terms you support ?
—-We accept T/T, credit card ,Visa card, Paypal etc.
7. What is your delivery time ?
—-It depend on your qty,if we have it in stock ,we can ship in 3 days after receive deposit ,if we don’t have it in stock,normally production time is 7-10 working days .
8. Do you have CE and ISO certificate ?
—-Yes, most of our products have the CE and ISO certificate
