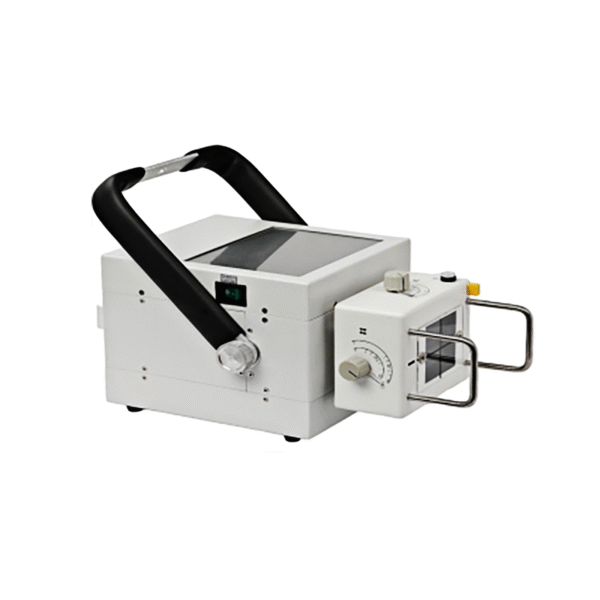

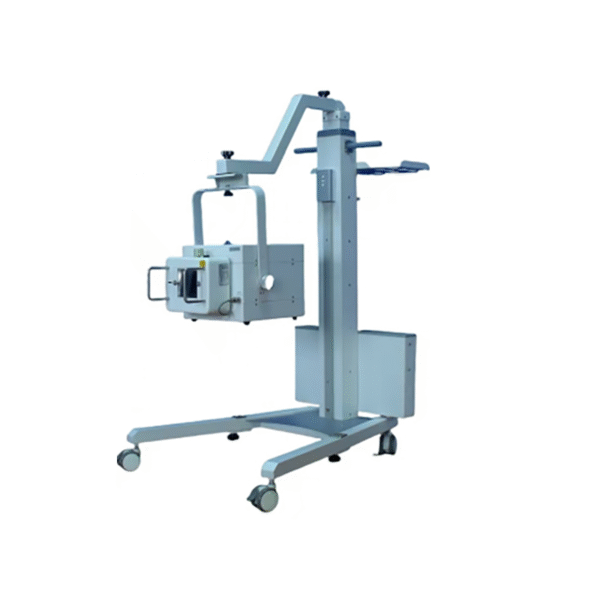

SR- P8V Portable X-ray Machine for Veterinary -

Product Description

High Quality Animal X-ray Machine Portable Veterinary X- Ray Machine for Vet

General parameters
Output Power	8kW
Rated Voltage	220VAC ,±10%, 50Hz
Inverter Frequency	100kHz +/- 5%
kV accuracy	Full range+4%
mA accuracy	≤±(5% ) (mA>25mA,ms>5); ≤±(10% +1mA) (mA≤25mA);
Rotor	Fixed anod e
Exposure parameters
kV Range	40kV-120kV, 1kV step
mA Range	10-140mA
ms Range	2 -2000ms
ms accuracy	≤±(5% +0.2ms)
mAs Range	0.2-100mAs
mAs accuracy	≤±(5%+0.2mAs)
Optional parameters
tech. mode	kV-mAs
tech. mode	kV-mA-ms
Communication interface	RS-232
Dimension（mm）	526240210
weight（kg）	17
Core parameters
Max power	8kW
Focal spot	2
Maximum current of small filament	150mA
Maximum current of big filament	125kv，0.24mA
Leakage radiation loading factor	15°
X-ray tube target angle	0.65 mm Al / 75 kV
X-ray tube intrinsic filtration	1.5mmAl / 75 kV

FAQ

1. Are you a manufacture or trader ?
—-We are a professional manufacture , we have our own produce team and sales team, we also provide one-stop service.
2. What’s your MOQ ?
—-For this product, MOQ is 1 unit.
3. How long is the warranty time ?
—-We supply 12 months warranty time ,during this time we will help you solve any problems.
4. Do you provide OEM/ODM Service ?
—-Yes, we provide this service to meet different requirements , different budget to all clients.
5. How are we going to install the equipment after purchasing ?
—-We will provide user manual comes with machine ,also professional installation video to help you .
6.What payment terms you support ?
—-We accept T/T, credit card ,Visa card, Paypal etc.
7. What is your delivery time ?
—-It depend on your qty,if we have it in stock ,we can ship in 3 days after receive deposit ,if we don’t have it in stock,normally production time is 7-10 working days .
8. Do you have CE and ISO certificate ?
—-Yes, most of our products have the CE and ISO certificate
