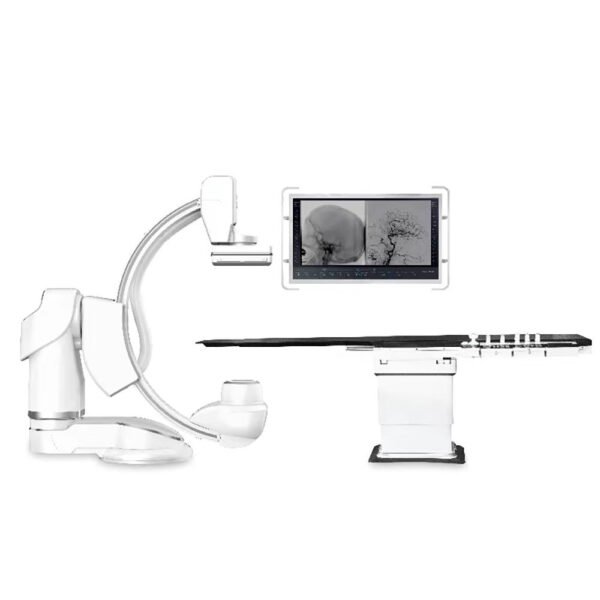

SR-Pilot C High Frequency X-Ray Radiography Price Medical C -Arm Fluoroscopy X-Ray Machine
Low-dose mode
Designed for gynaecology and children,greatly reducing radiationdamage.
Field prediction without X-rayIt can intelligently prompt the position of photographic field ofview after the table moves on the screen.
Intelligent filter switching
According to different projection parts, the different material filterscan be automatically switched to improve the radiation effect.
Product Description
Medical Angiography X-Ray System
| Category | Project | Content |
| Electrical Performance |
Photography Capacity | 5.0KW |
| Automatic Fluoroscopy | Tube Voltage:40kV～120kV adjust automatically | |
| Tube Current：0.3mA～4mA adjust automatically | ||
| Manual Fluoroscopy | Tube Voltage:40kV～120kV Continuous | |
| Tube Current：0.3mA～4mA Continuous | ||
| Pulse Fluoroscopy | Tube Voltage:40kV～120kV Continuous | |
| Tube Current：0.3mA～30mA Continuous | ||
| Pulse frequency: continuously, adjustable | ||
| X-ray Tube | Photography | 40 kV~120 kV |
| Tube Voltage and mA | 25-100mA | |
| X-ray Tube Special forFixed anode | Dual-focus, small focus: 0.3, | |
| High Frequency | Inverter Frequency: 110KHz | |
| Dynamic Plat Panel Detctor |
Type | A-si |
| Scintilator | CSI | |
| Vision size | 210mm*210mm | |
| : | ||
| A/D transform | 16 bit | |
| Pixel gap | 154 um | |
| Limiting resolution | 3.2 LP/mm | |
| Pixel matrix | 1344*1344 | |
| Structural performance |
Directive wheel | ±90°revolution can freely change the moving direction of the unit. |
| Ascending & Descend | ≥400mm | |
| Forward and Backward Movement: 200mm | ||
| Revolution around Horizontal Axis: ±180° | ||
| Revolution around Vertical Axis: ±15° | ||
| Focus screen distance:1000mm | ||
| C-arm opening: 780mm | ||
| C-arm arc depth: 640mm Slip on orbit:120°(+90°～ -30°) | ||
Company information
FAQ
1. Are you a manufacture or trader ?
—-We are a professional manufacture , we have our own produce team and sales team, we also provide one-stop service.
2. What’s your MOQ ?
—-For this product, MOQ is 1 unit.
3. How long is the warranty time ?
—-We supply 12 months warranty time ,during this time we will help you solve any problems.
4. Do you provide OEM/ODM Service ?
—-Yes, we provide this service to meet different requirements , different budget to all clients.
5. How are we going to install the equipment after purchasing ?
—-We will provide user manual comes with machine ,also professional installation video to help you .
6.What payment terms you support ?
—-We accept T/T, credit card ,Visa card, Paypal etc.
7. What is your delivery time ?
—-It depend on your qty,if we have it in stock ,we can ship in 3 days after receive deposit ,if we don’t have it in stock,normally production time is 7-10 working days .
8. Do you have CE and ISO certificate ?
—-Yes, most of our products have the CE and ISO certificate
