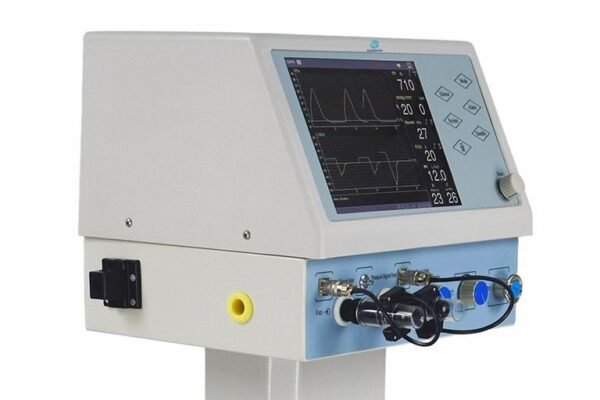

SR-V700B ICU Medical Ventilator Portable Ventilators Machine
•Operating Modes: Pneumatically driven & electronically controlled, closed, semi-closed and semi-open
•Pneumatically driven electrically controlled ventilator, can be used for emergency clinical resuscitation and respiratory therapy
•Nonhazardous environmentally friendly frame, precise construction, elegant design, equipped with automated self-checking function during startup and an automatic self-calibrating sensor
•Display: Built-in 10.4 inch high visibility cx?lor TFT display, able-simultaneously display Pressure-Time and Frequency-Time waveforms in real time
•Sigh: Ability to insert 1-8 sigh breaths in every 100 breaths, ventilation should be no less than 1.5 the tidal volume
•Equipped with infrared turbine flow sensor; precisely measures gas flows, stable and reliable
Product Description

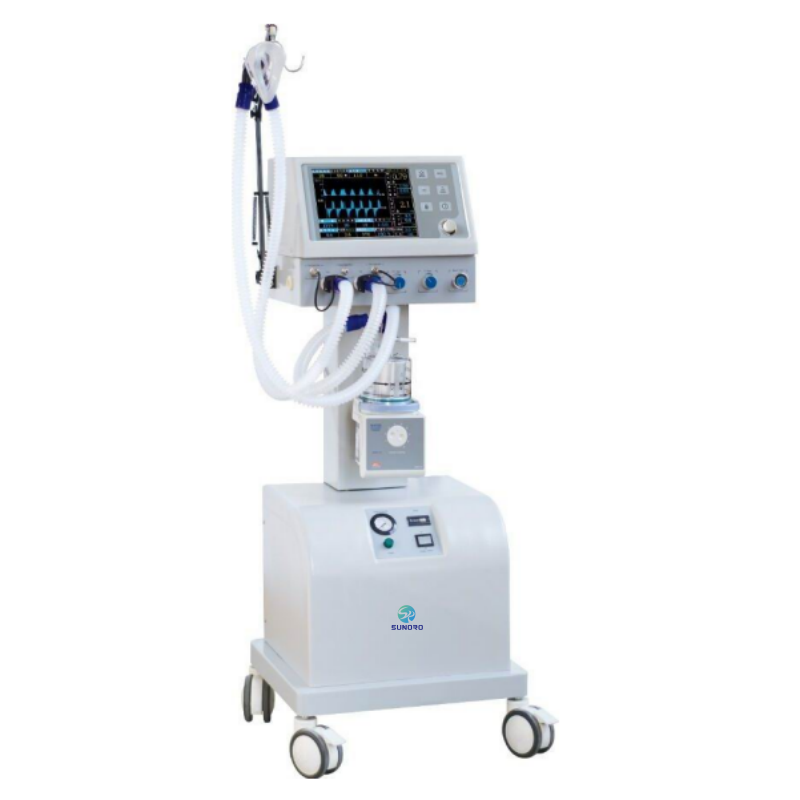

Professional Hospital Medical Equipment ICU Ventilator Machine Ambulance Breathing Equipment
| Display | 10.4 inch high visibility color TFT display |
| Ventilation Mode | A/C, IPPV, SIPPV, IMV, SIMV, Standby, SPONT, MANUAL |
| Minute Volume | Greater than or equal to 18L |
| Back-up Power Supply | At least 4 hours |
| Tidal Volume | Adjustable range: 50-1500ml, Display range: 0-2000ml |
| Respiratory Rate | 1-99bpm |
| Inspiratory/expiratory (l:E) Ratio | 4:1-1:4 |
| PEEP | 0-10cmH20 |
| SIMV Rate | 1-20bpm |
| Inspiratory Pressure Trigger | -10-10cmH20 |
| Inspiratory Plateau | Adjustable from 0-50% of inspiratory time |
| Adjustable Oxygen Concentration | |21-100% |
| Gas Supply Requirement | 280〜600 kPa medical grade oxygen and compressed air |
| Pressure Limit | 1.0kPa~6.0kPa |
| Maximum Safe Operating Pressure | ≤6.0kPa |
| Tidal Volume Alarm | Upper Limit: 10~2000ml, Lower Limit: 0~1800ml |
| Airway Pressure Alarm | Upper Limit: 0.1~6kPa, Lower Limit: 0~5kPa |
| Oxygen Concentration Alarm | Upper Limit: 22-100%, Lower Limit: 21〜80% |
Company information
FAQ
1. Are you a manufacture or trader ?
—-We are a professional manufacture , we have our own produce team and sales team, we also provide one-stop service.
2. What’s your MOQ ?
—-For this product, MOQ is 1 unit.
3. How long is the warranty time ?
—-We supply 12 months warranty time ,during this time we will help you solve any problems.
4. Do you provide OEM/ODM Service ?
—-Yes, we provide this service to meet different requirements , different budget to all clients.
5. How are we going to install the equipment after purchasing ?
—-We will provide user manual comes with machine ,also professional installation video to help you .
6.What payment terms you support ?
—-We accept T/T, credit card ,Visa card, Paypal etc.
7. What is your delivery time ?
—-It depend on your qty,if we have it in stock ,we can ship in 3 days after receive deposit ,if we don’t have it in stock,normally production time is 7-10 working days .
8. Do you have CE and ISO certificate ?
—-Yes, most of our products have the CE and ISO certificate
