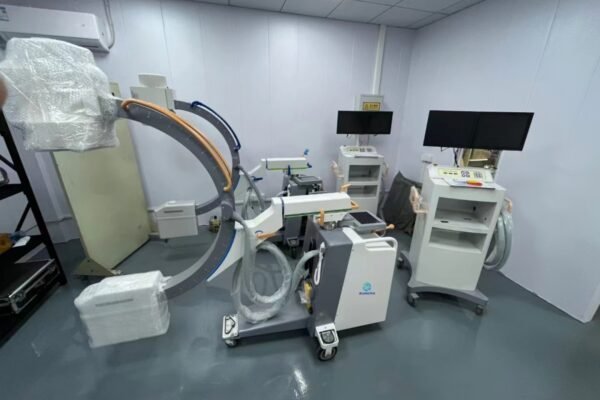

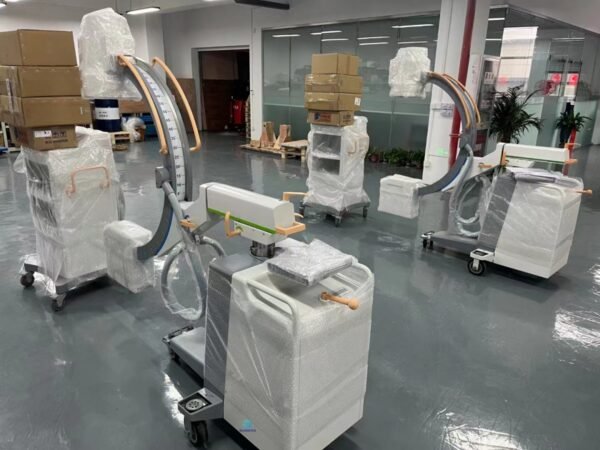

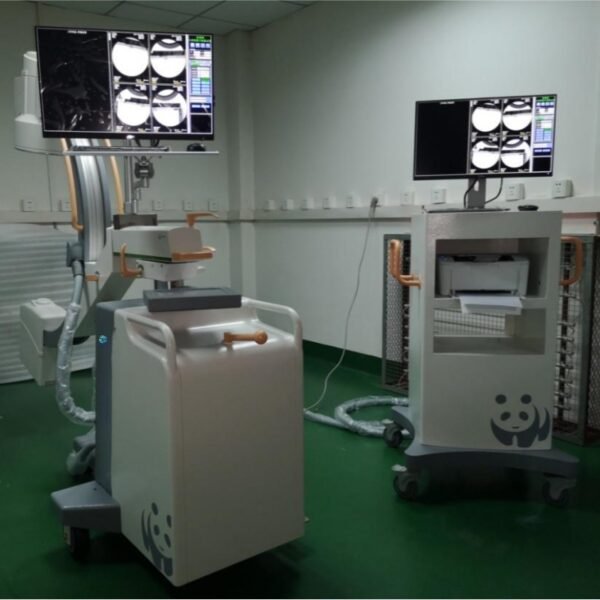

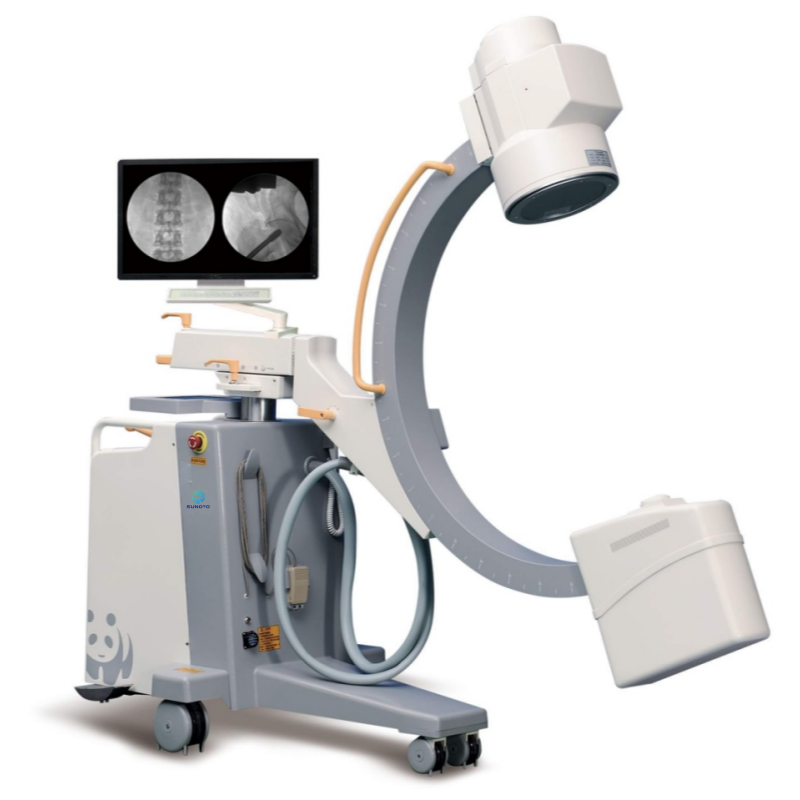

SR10D Medical C Arm X-ray Surgical Imaging System Digital C-arm Machine

Application :
Widely use in operating room, X-ray department,emergency room ,intervention and peripheral angiography.
General surgery ,urology, chest surgery,trauma, spine surgery, abdominal surgery, orthopedics ,bone reduction and fixation, endoscopy and surgery.Intervertebral disc angiography and angioplasty .

Category: C-arm

Product Description

High Quality C-Arm X-ray Digital X-ray Hospital Uses a Mobile Digital C-arm System

HF generator	110KV, 3.5KW , 40kHz / 120KV, 5KW , 40kHz
	Fluoroscopy mode40~110kv /120kv 0.5~5mA
	(KV manual and automatic);
Fluoroscopy mode	Pulsd fluoroscopy 40~110kv /120kv 0,5-5mA
	Boost fluoroscopy 40~110kV /120kv 5~10mA;
	Photography 40~110kV /120kv 1~250mAs
	Dual-focus fixed anode:0.6mm/1.5mm
X ray tube	Dual-focus rotating anode:0.3mm/0.6mm
X ray tube	Italy IMD Technology
Image intensifier	Japan Toshaba Brand
CCD camera	Japanese Watt Brand, 360° rotation
	5 Degree recursive Noise Reduction
	Frame freezing
Image system	Thousands of image data storage
	Image conversing and rotating
	Screen display with image comparison
	Support “one click” print,print the image report
	Equip with Dicom 3.0 network port
	Support Dicom 3.0 standard data export function
Mechanical motion specifications	Verticaltravel:0-400mm Horizontaltravel:0~200mm(electric for optional) Rotation about horizontal axis:±180° (electric for
	optional)
	Slipping along the circular arcrail (electric for optional)
	Distance of focal spot to image generator(SID):1000mm
	Depth in arm≥650mm Mobile stand :1800mm800mm1850mm
C-arm dimension	Image system: 750mm530mm1680mm
	High resolution CCD camera:1set
	x-ray generator:1set
	9” image intensifier:1set
Standard configuration	image processor:1set
Standard configuration	24” LCD high definition display 1 set

FAQ

1. Are you a manufacture or trader ?
—-We are a professional manufacture , we have our own produce team and sales team, we also provide one-stop service.
2. What’s your MOQ ?
—-For this product, MOQ is 1 unit.
3. How long is the warranty time ?
—-We supply 12 months warranty time ,during this time we will help you solve any problems.
4. Do you provide OEM/ODM Service ?
—-Yes, we provide this service to meet different requirements , different budget to all clients.
5. How are we going to install the equipment after purchasing ?
—-We will provide user manual comes with machine ,also professional installation video to help you .
6.What payment terms you support ?
—-We accept T/T, credit card ,Visa card, Paypal etc.
7. What is your delivery time ?
—-It depend on your qty,if we have it in stock ,we can ship in 3 days after receive deposit ,if we don’t have it in stock,normally production time is 7-10 working days .
8. Do you have CE and ISO certificate ?
—-Yes, most of our products have the CE and ISO certificate
