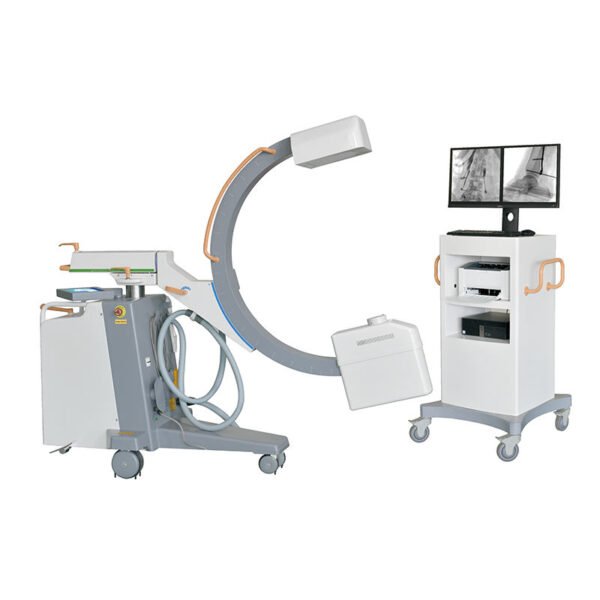

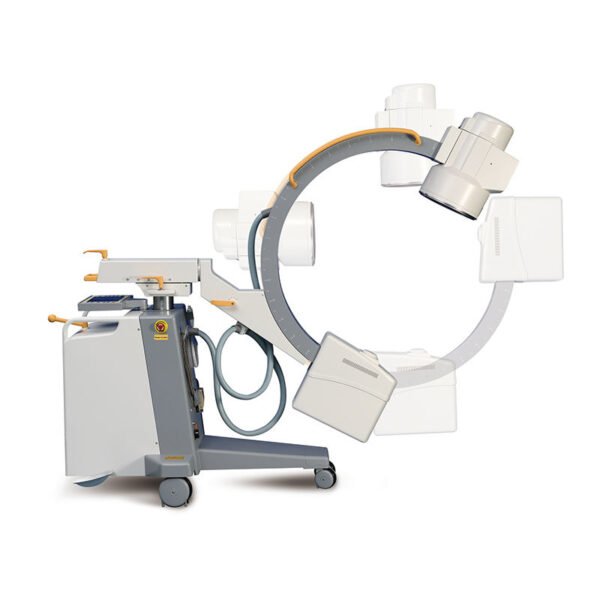

SR20D-1 Hospital Bone X Ray Equipment High Frequency C-arm System Mobile C-arm X Ray Machine
SR20D-1 Hospital Bone X Ray Equipment High Frequency C-arm System Mobile C-arm X Ray Machine
SR20D-1 Hospital Bone X Ray Equipment High Frequency C-arm System Mobile C-arm X Ray Machine
  1. SR20D-1 Hospital Bone X Ray Equipment High Frequency C-arm System Mobile C-arm X Ray Machine
  2. SR20D-1 Hospital Bone X Ray Equipment High Frequency C-arm System Mobile C-arm X Ray Machine
  3. SR20D-1 Hospital Bone X Ray Equipment High Frequency C-arm System Mobile C-arm X Ray Machine

SR20D-1 Hospital Bone X Ray Equipment High Frequency C-arm System Mobile C-arm X Ray Machine

1)With HF & HV generator,inverter,and High quality image intensifier, the x ray generator can work stably.It also reduces the damage for the doctors caused by radiation.
2)10.4″LCD friendly interface control board: easy operation and can be rotated to 180°(L90°,R90°) Compared with ordinary key board, our LCD display is not easy to be oxidized Besides, the trouble will be displayed in Chinese, which will improve the efficiency of fault diagnosis.

Category:

Product Description

Hospital Equipment Digital Electric High Frequency Mobile C-arm X-ray Machine Price

HF generator 120KV, 5KW , 40kHz
Fluoroscopy mode Fluoroscopy mode40~120kv 0.5~5mA
(KV manual and automatic);
Pulsd fluoroscopy 40~120kv 0,5-5mA
X ray tube Boost fluoroscopy 40~120kv 5~10mA;
Photography 40~120kv 1~250mAs
Dual-focus rotating anode:0.3mm/0.6mm
Italy IMD Technology
Image intensifier Three fields of vision 9, 6, 4.5 Japan Canon Brand
CCD camera 360° rotation
5 Degree recursive Noise Reduction
Frame freezing
Image system Thousands of image data storage
Image conversing and rotating
Screen display with image comparison
Support “one click” print,print the image report
Equip with Dicom 3.0 network port
Support Dicom 3.0 standard data export function
Mechanical motion specifications Verticaltravel:0-400mm Horizontaltravel:0~200mm(electric for optional) Rotation about horizontal axis:±180° (electric for
optional)
Slipping along the circular arcrail (electric for optional)
C-arm dimension Distance of focal spot to image generator(SID):1000mm
Depth in arm≥650mm Mobile stand :1800mm*800mm*1850mm
Image system: 750mm*530mm*1680mm
Standard configuration High resolution CCD camera:1set
x-ray generator:1set
9” image intensifier:1set
image processor:1set
24” LCD high definition display 1 set

Company information



FAQ

1. Are you a manufacture or trader ?
—-We are a professional manufacture , we have our own produce team and sales team, we also provide one-stop service.
2. What’s your MOQ ?
—-For this product, MOQ is 1 unit.
3. How long is the warranty time ?
—-We supply 12 months warranty time ,during this time we will help you solve any problems.
4. Do you provide OEM/ODM Service ?
—-Yes, we provide this service to meet different requirements , different budget to all clients.
5. How are we going to install the equipment after purchasing ?
—-We will provide user manual comes with machine ,also professional installation video to help you .
6.What payment terms you support ?
—-We accept T/T, credit card ,Visa card, Paypal etc.
7. What is your delivery time ?
—-It depend on your qty,if we have it in stock ,we can ship in 3 days after receive deposit ,if we don’t have it in stock,normally production time is 7-10 working days .
8. Do you have CE and ISO certificate ?
—-Yes, most of our products have the CE and ISO certificate
