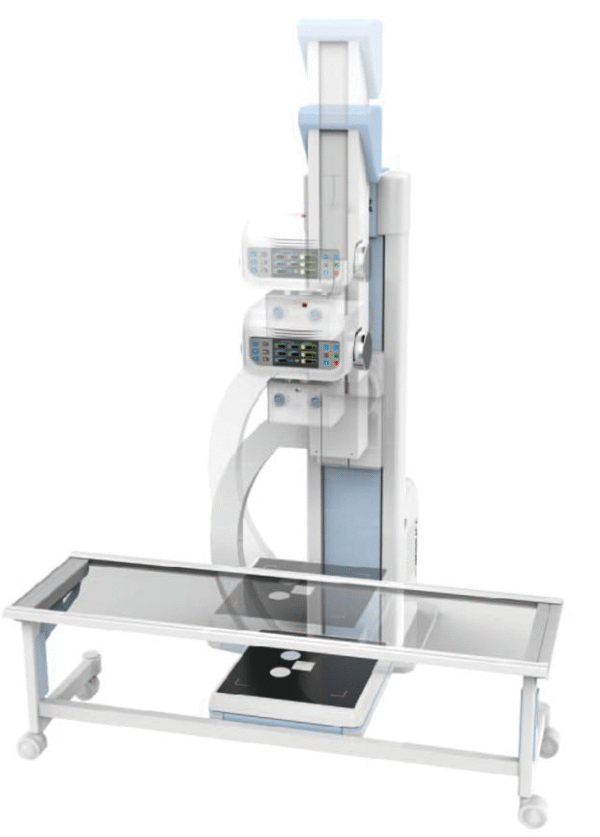

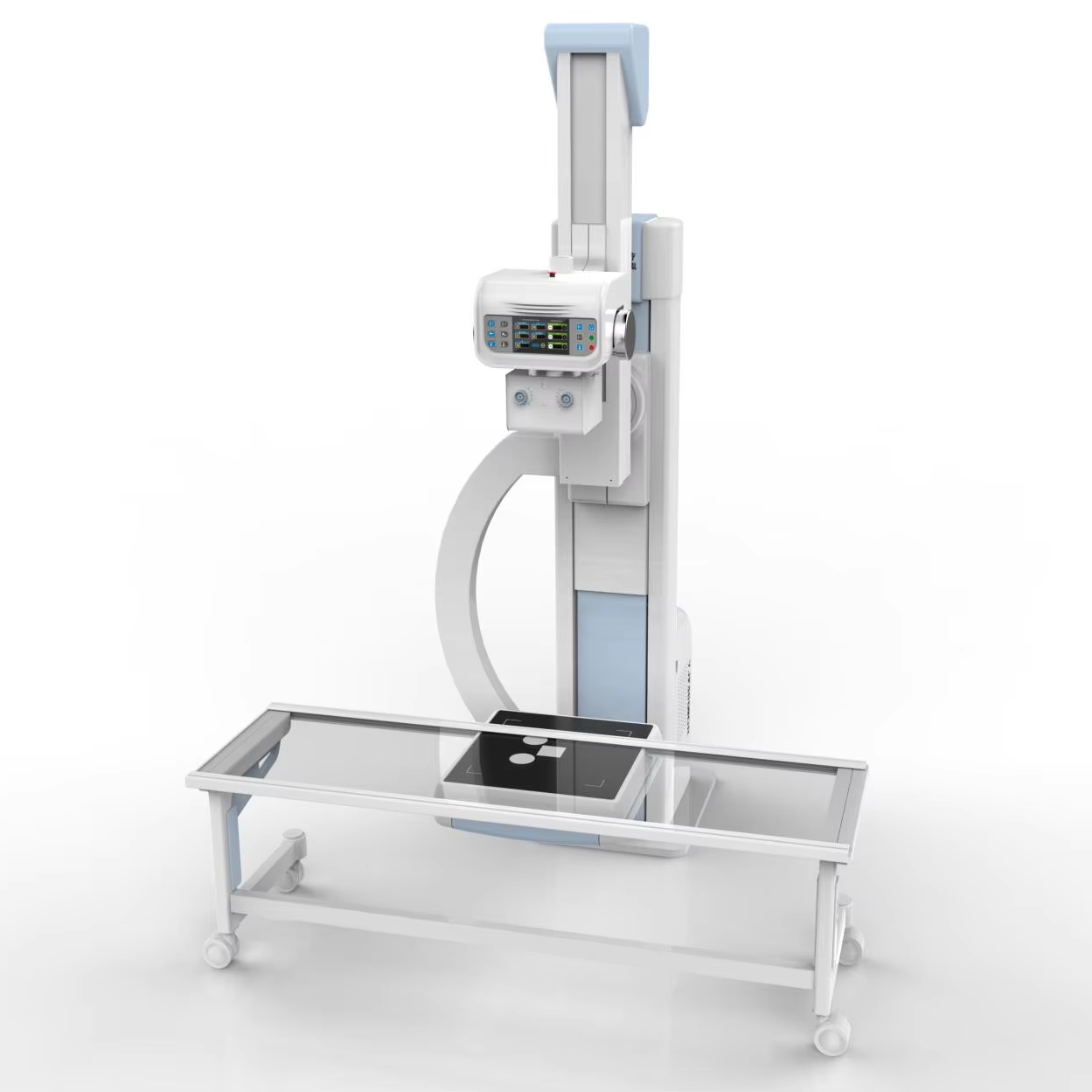

SR50DR-U Medical DR Xray System U-Arm Digital Radiography X Ray Machine
1. Fault self-diagnosis and protection
2. Automatic calibration of tube current
3. X-ray tube has the function of filament dormancy
4. AEC function, different ionization chamber as optional
5. Analog – digital double – loop control, simple operation, high intelligence
Product Description
UC-Arm Digital Radiography System U-arm DR
| X-ray Generator | Output Power | 50KW |
| Power Voltage | 380V±38V | |
| kV range | 40~150kV | |
| mA range | 10~630mA | |
| mAs range | 0.1 ~630mAs | |
| Exposure time | 0.002~6.3S | |
| X-ray Tube | Small focus | 0.6 |
| Large focus | 1.2 | |
| Collimator | Inherent filtration | 1.0mm Al /75kV |
| Light Source | LED | |
| Radiographic Table | Top Table Size | 2020mmX690mmX680mm |
| Load-bearing | Less than 200kg | |
| Movement | Wheels | |
| DR Machine Frame | Up&Down Moving Range | 700mm ~ 1700mm |
| Rotating Range | 0°~ 105° | |
| SID | 1000mm ~ 1800mm | |
| Wire Flat Panel Detector | Size | 17X17inch |
| Scintillator | CSI | |
| Pixels | 3072*3072 | |
| Resolution | 3.6 | |
| AD Conversion | 16 | |
| Computer& LCD | CPU | ≥2.8GHz |
| Memory | ≥4GB | |
| Disk Capacity | ≥1T | |
| ≥1T | 23inch |
Company information
FAQ
1. Are you a manufacture or trader ?
—-We are a professional manufacture , we have our own produce team and sales team, we also provide one-stop service.
2. What’s your MOQ ?
—-For this product, MOQ is 1 unit.
3. How long is the warranty time ?
—-We supply 12 months warranty time ,during this time we will help you solve any problems.
4. Do you provide OEM/ODM Service ?
—-Yes, we provide this service to meet different requirements , different budget to all clients.
5. How are we going to install the equipment after purchasing ?
—-We will provide user manual comes with machine ,also professional installation video to help you .
6.What payment terms you support ?
—-We accept T/T, credit card ,Visa card, Paypal etc.
7. What is your delivery time ?
—-It depend on your qty,if we have it in stock ,we can ship in 3 days after receive deposit ,if we don’t have it in stock,normally production time is 7-10 working days .
8. Do you have CE and ISO certificate ?
—-Yes, most of our products have the CE and ISO certificate
