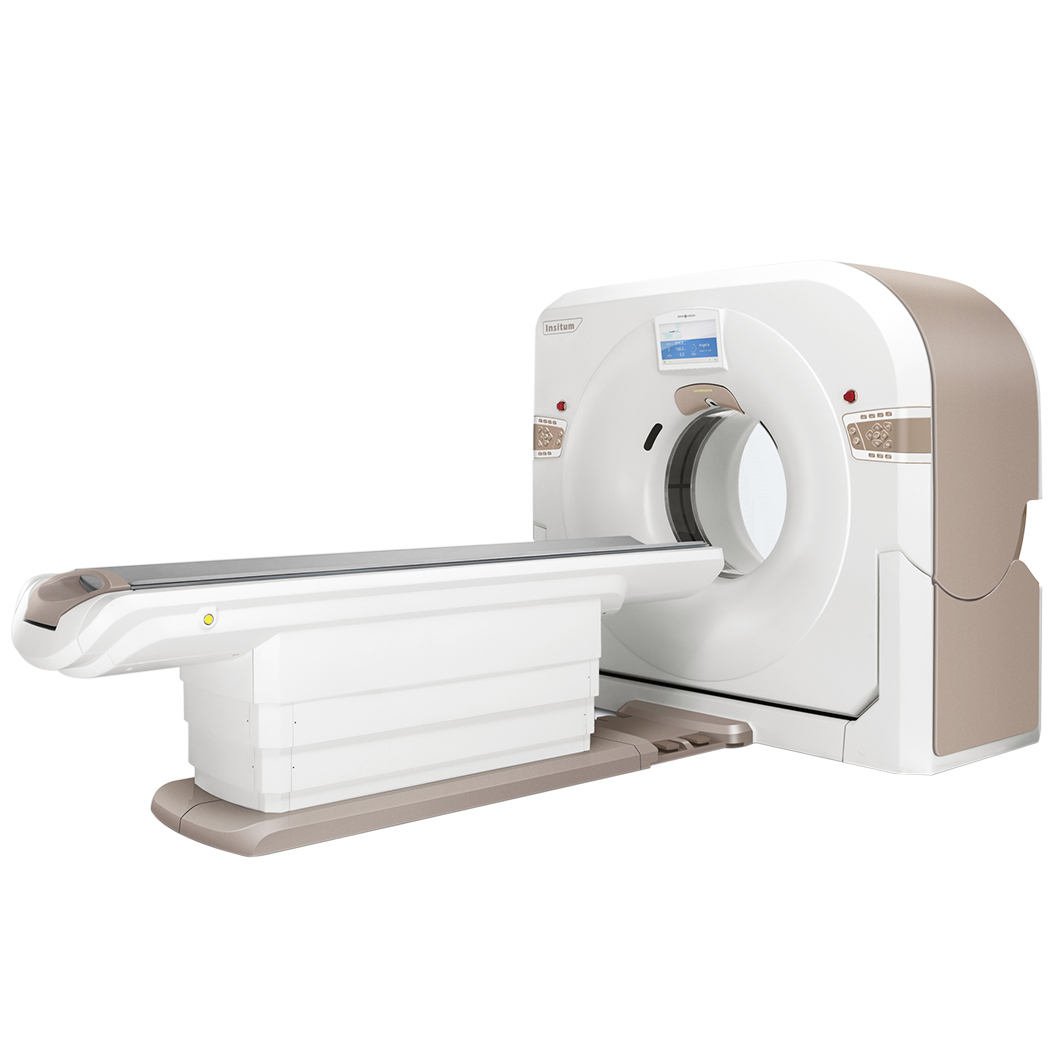

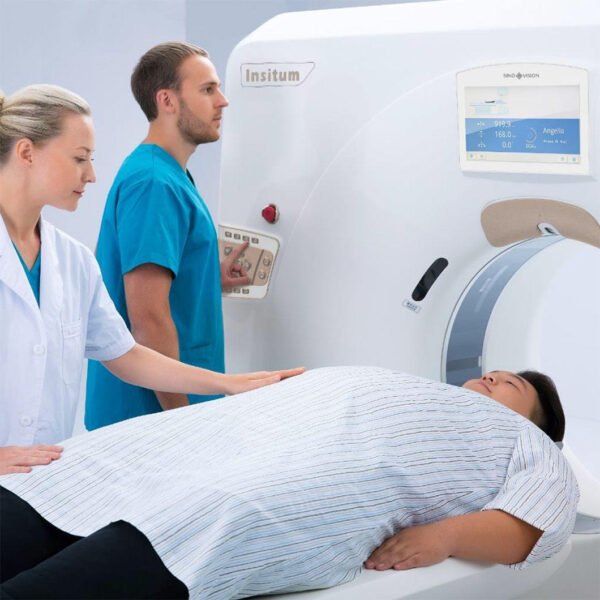

SRCT-568 Medical Radiology 16 32 64 128 Slice CT Scan Computed Tomography Scanning Machine -

Product Description

32 64 128 Slice Computed Tomography Scanner Medical Full Body CT X Ray Scan Machine

1. Gantry
Aperture	76cm
One-button positioning	Preset 3 protocols
Scan speed/360°	0.48、0.5、 0.6、 0.7、0.8、 0.9、1.0、2.0s
Scan FOV	50cm
Tilt range	Mechanical tilt: ±30° (step 0.5°)
Display panel	Size: 13.3 inch LCD、showing current scan parameters
Auto voice	Support
ECG cable connection interface	Integrated in the front of gantry control panel


2. Patient Table
Max. horizontal travel range	1950mm
Horizontal scannable range	50mm~ 1860mm
Horizontal travel speed	1~ 200mm/s
Vertical table travel range	425mm~990mm
Max. table load	250kg
One-key patient table release	Support
Patient table cradle switches	Support

3. X-ray Tube
Anode heat capacity	5.3MHU
Cooling rate	815kHU/min
Focal spot size	Large: 1.0mm X 1.0mmSmall: 0.5mm X 1.0mm


4. Generator
Power rating	50.4kW
kV settings	70、80、100、120、 140kV
mA range (Step Size)	10~420mA (1mA step)

5. Detector
Material	Solid-state GOS
No. of Detector rows	64 rows
Max. number of slices/rotation	128
No. of detector channels per row	864
Total No. of detector elements	55296
Min. slice thickness	0.625mm
Detector width	40mm
Max. data sampling rate	4800 views/360掳

6. Scanning Performance
Scout scan	Supports 3 modes: A.P. lateral and dual; Scannable range 50~1860mm;
Acquisition modes	128 X 0.625mm 64 X 0.625mm
Acquisition modes	32 x 0.625mm
Min slice thickness	0.625mm
Collimation width selection	40mm、20mm、15mm、 10mm
Pitch factor	0.2~1.75 (multiple selections)
Max. continuous scan time	100s

7. Image Reconstruction
Recon FOV	50~500mm; 50~650mm (Extended)
Recon matrices	512X512、768x 768、1024X1024
Recon speed	≥40 ips , the actual speed can reach 42~28 ips
Display matrix	1024 X 1024

8. Image Quality
Spatial resolution	≥21 lp/cm @ 0% MTF; X-Y plane ≥15 lp/cm@0% MTF; Z plane
Low-contrast resolution	2mm@0.3%@ 18mGy;
Image Noise	≤0.35% (Central dose≤40 mGy)
CT HU scale	Standard: -1024HU ~ +3072HU Extended: -32768HU ~ +32767HU

9. Cardiac Scan
Prospective ECG scan	Support
Retrospective ECG scan	Support
Multi-sector coronary artery scan	Self-adaptive sector with maximum support for 4 sectors
Temporal resolution	60ms; 25ms @ RTF
ECG wave editing	Provides editing, adding, and deleting functions for abnormal ECGs (such as premature beat) used for coronary artery recon
Cardiac reconstruction	Automatically selects the optimal recon phase, multiphase recon for whole sequence or a single image

FAQ

1. Are you a manufacture or trader ?
—-We are a professional manufacture , we have our own produce team and sales team, we also provide one-stop service.
2. What’s your MOQ ?
—-For this product, MOQ is 1 unit.
3. How long is the warranty time ?
—-We supply 12 months warranty time ,during this time we will help you solve any problems.
4. Do you provide OEM/ODM Service ?
—-Yes, we provide this service to meet different requirements , different budget to all clients.
5. How are we going to install the equipment after purchasing ?
—-We will provide user manual comes with machine ,also professional installation video to help you .
6.What payment terms you support ?
—-We accept T/T, credit card ,Visa card, Paypal etc.
7. What is your delivery time ?
—-It depend on your qty,if we have it in stock ,we can ship in 3 days after receive deposit ,if we don’t have it in stock,normally production time is 7-10 working days .
8. Do you have CE and ISO certificate ?
—-Yes, most of our products have the CE and ISO certificate
