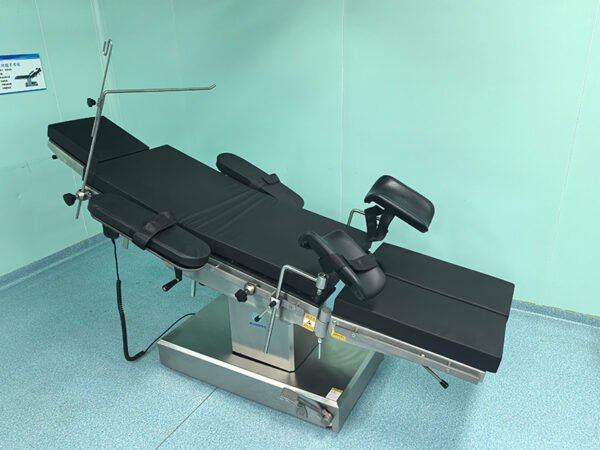

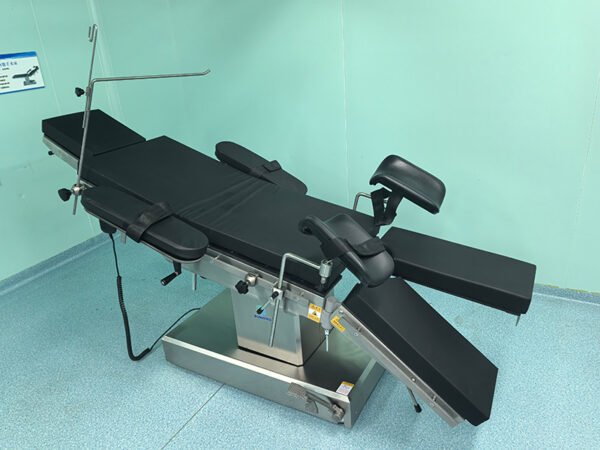

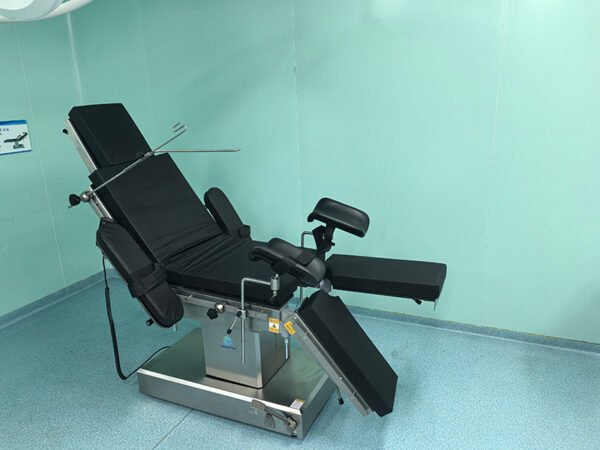

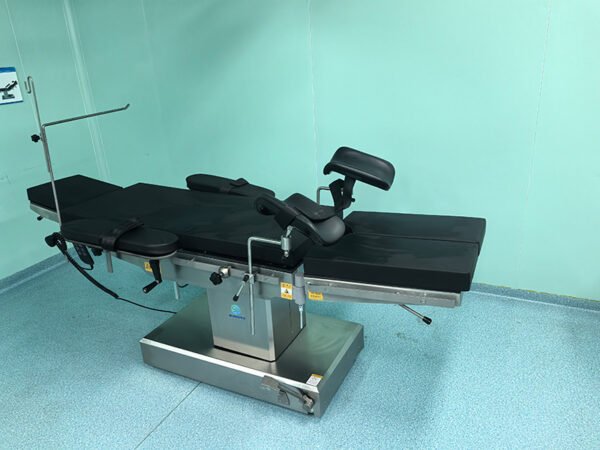

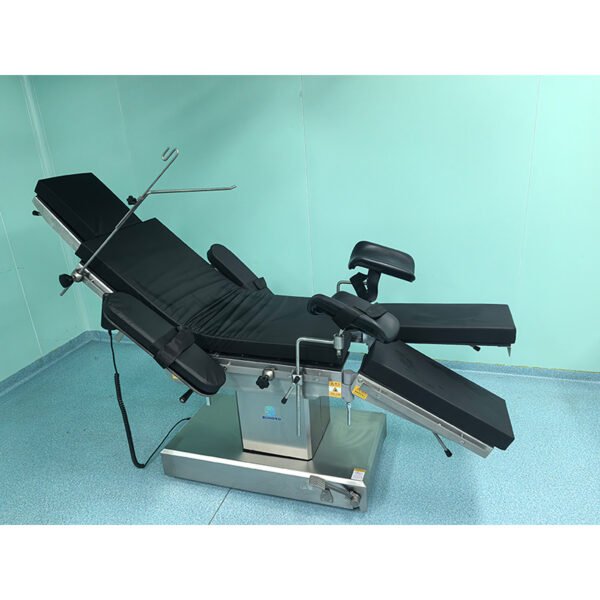

SRO-E4 Medical Electric Surgery Hydraulic Operating Table

①Using precision medical micromotor, electric push rod mechanical structure, the product rigidity is superior, the running speed is uniform, stable, the position is accurate, the performance is reliable, durable.
②The operation of lifting, head and foot tilt, left and right tilt are driven by independent power system.
③The lifting back is driven by the cylinder to lock
④The base shell is 304 stainless steel, which is beautiful and easy to clean and disinfected.

Product Description

Four-electric comprehensive operating table

Functions: Countertop lifting, forward and backward tilting, left and right tilting, electric back lifting, built-in battery.
The countertop length is 2020 (±20) mm
The countertop width is 495 (±20) mm (excluding the side rails).
Countertop height (electric) excluding mattress: minimum 660(±20)- maximum 960(±20)mm (electric)
The forward tilt Angle in front of the bed (electric) is ≥17°, and the backward tilt is ≥17°
The left and right tilt angles of the bed surface (electric) : left tilt ≥19°, right tilt ≥20°
The folding Angle of the head plate (manual) : upper folding ≥40°, lower folding ≥90°, detachable
The backplate folding Angle (electric) : upper folding ≥68°, lower folding ≥15°.
The leg plate folding Angle (manual) : upper folding ≥15°, lower folding ≥90°. The shaft type can be unfolded 180° and is detachable
Rated load capacity: 135kg
The lifting stroke of the waist bridge is 110mm (±10)

FAQ

1. Are you a manufacture or trader ?
—-We are a professional manufacture , we have our own produce team and sales team, we also provide one-stop service.
2. What’s your MOQ ?
—-For this product, MOQ is 1 unit.
3. How long is the warranty time ?
—-We supply 12 months warranty time ,during this time we will help you solve any problems.
4. Do you provide OEM/ODM Service ?
—-Yes, we provide this service to meet different requirements , different budget to all clients.
5. How are we going to install the equipment after purchasing ?
—-We will provide user manual comes with machine ,also professional installation video to help you .
6.What payment terms you support ?
—-We accept T/T, credit card ,Visa card, Paypal etc.
7. What is your delivery time ?
—-It depend on your qty,if we have it in stock ,we can ship in 3 days after receive deposit ,if we don’t have it in stock,normally production time is 7-10 working days .
8. Do you have CE and ISO certificate ?
—-Yes, most of our products have the CE and ISO certificate
