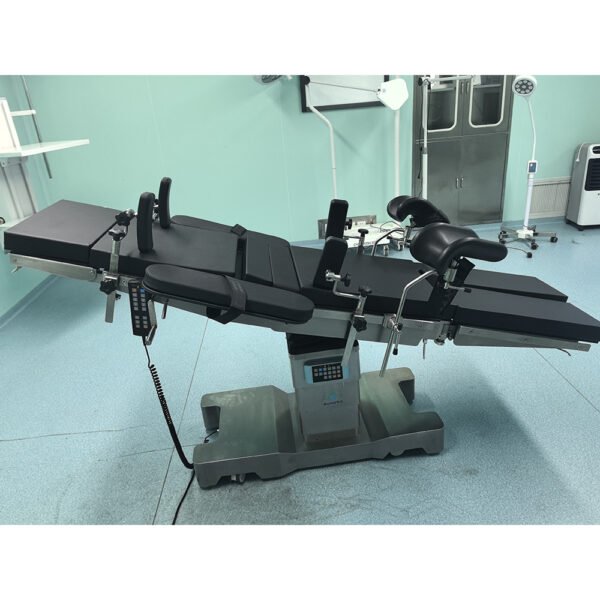

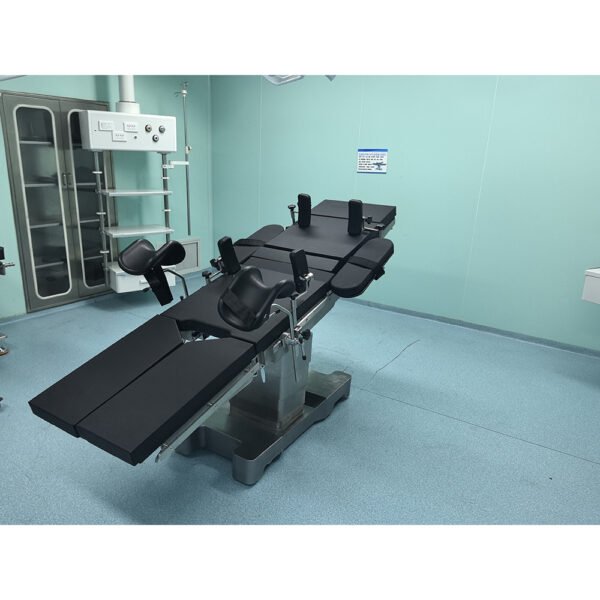

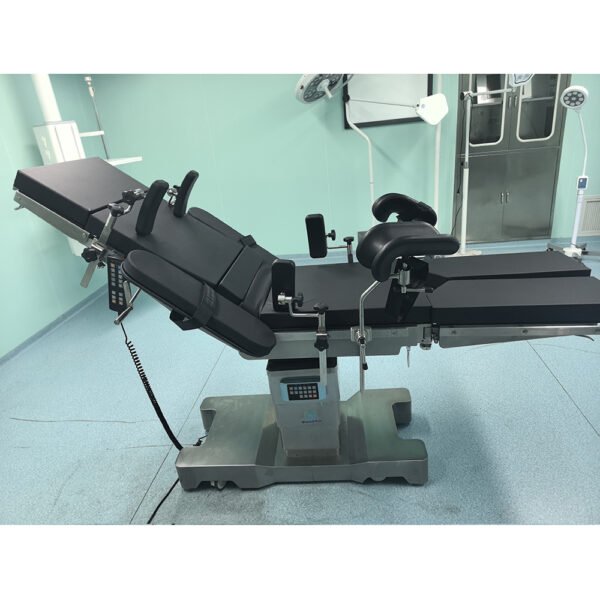

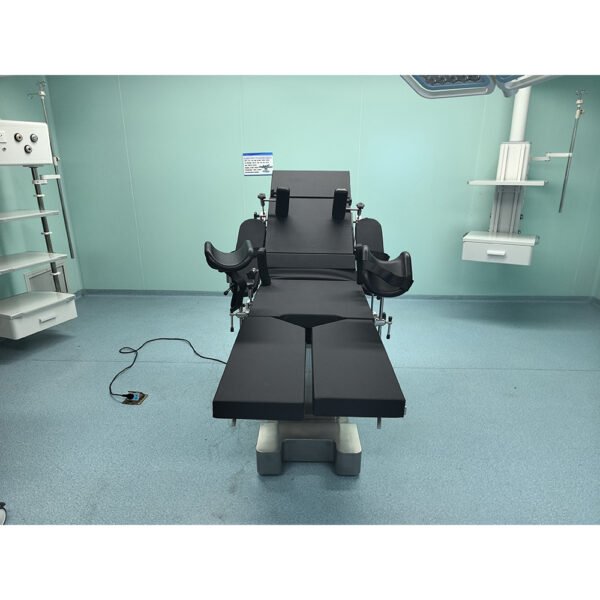

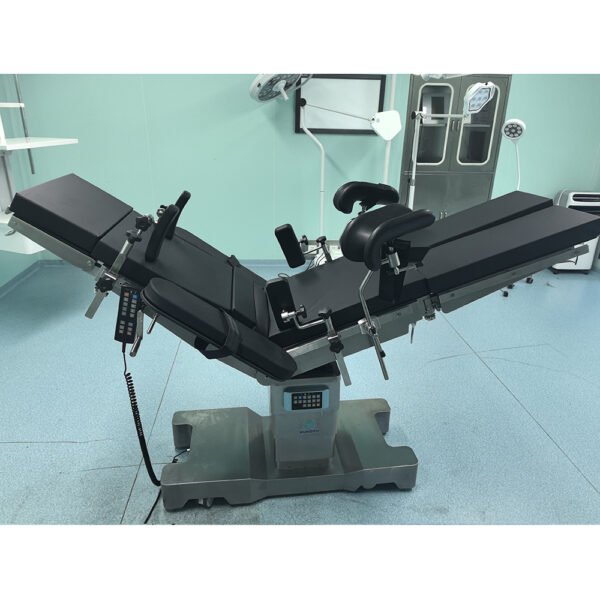

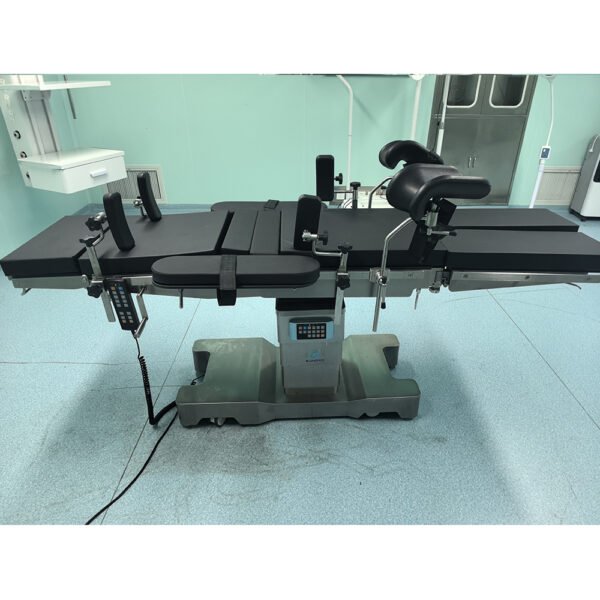

SRO-E7D Hydraulic Series Hydraulic Operating Table Operating Table Bed

Product Description

Electric hydraulic operating table (ultra-low position)
Functions: Minimum height up to 550mm, countertop lifting, electric back lifting, longitudinal translation, forward and backward tilting, left and right tilting, electric braking, one-button flexion and reverse flexion function, one-button reset function, built-in waist bridge, two operating systems, head and tail interchangeability, built-in battery.
The countertop length is 2050mm
The width of the countertop is 565mm
The countertop height is 550-1050mm
The lifting stroke of the countertop is 500mm
The forward tilt Angle in front of the bed should be ≥30°, and the backward tilt Angle should be ≥30°
The left-right tilt Angle of the bed surface should be no less than 20°, and the right-right tilt should be no less than 20°
The folding Angle of the head plate (manual) : upper folding ≥40°, lower folding ≥90°
The folding Angle of the leg board (manual) : upper folding ≥12°, lower folding ≥90°, and outward extension ≥90°
The folding Angle of the back plate is ≥78° when folded upwards and ≥25° when folded downwards
The built-in waist bridge lifting stroke is ≥110mm(±10mm)
One-click flexion and reverse flexion V-shaped position: ≤100°, reverse V-shaped position: ≤220°
The maximum translation distance of the countertop is ≥350mm
Rated load capacity: 225kg
Power supply: 220V± 10%,50Hz
