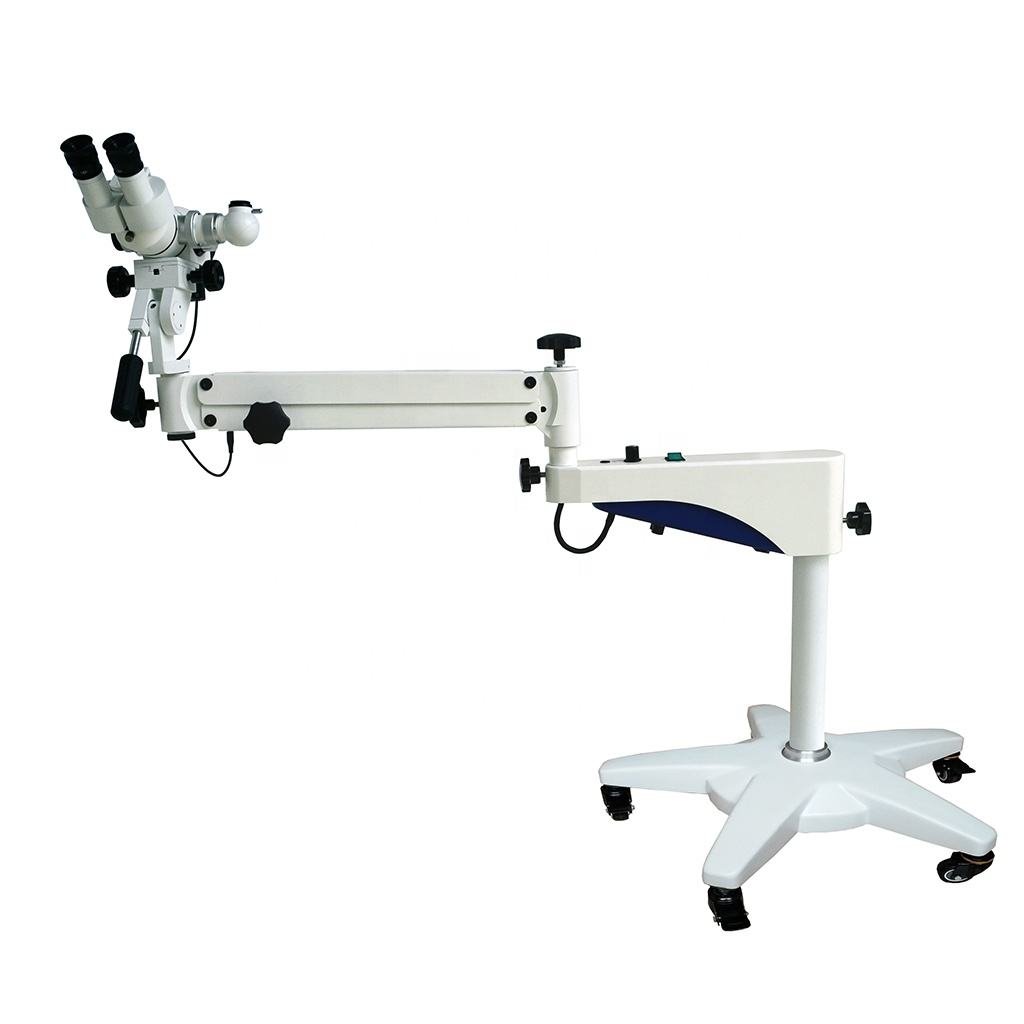

YDJ-II Medical Optical Colposcope Video Colposcope Camera

Vaginal microscope is a precise optical instrument specially developed for gynecological examination and diagnosis. Due to the optical amplification of the instrument, the vaginal lesions that cannot be observed by the naked eye can be clearly found by the instrument, which greatly improves the accuracy of diagnosis.

Product Description

Colposcope, LED Light Source, 45°tilted Observation Angle, 16X Magnification of Eyepiece

Viewing Angle	Binocular squint at 45 degrees
Eyepiece magnification	16X
Pupillary distance	50mm-80mm
Eyepiece visibility	±5D
The focal length of the objective	F=300mm(M58x0.75)
Multiplier system	Five-speed multiplier system: 0.4X, 0.66X, 1X, 1.5X, 2.5X
Total magnification	2.7X, 4.4X, 6.6X, 10X, 16.6X
Linear field of view	90mm, 55mm, 37mm, 24mm, 15mm
Optical splitter	50:50 optical splitter
Camera adapter	Can be connected to the C port 1/3 inch camera
Fine-tuning distance	20mm
Balance arm	Adjustable counterweight and locking
Lighting system	10W LED lamp coaxial lighting, brightness is adjustable, illuminance >30000LX
Power adapter	Output: DC12V3A, 36W, with magnetic ring power cord length 3 meters, output plug: coaxial 5.5×2. 1mm
Color filter	Built-in green and blue filters
support	Equipped with short columns and five-star base with casters, easy to move

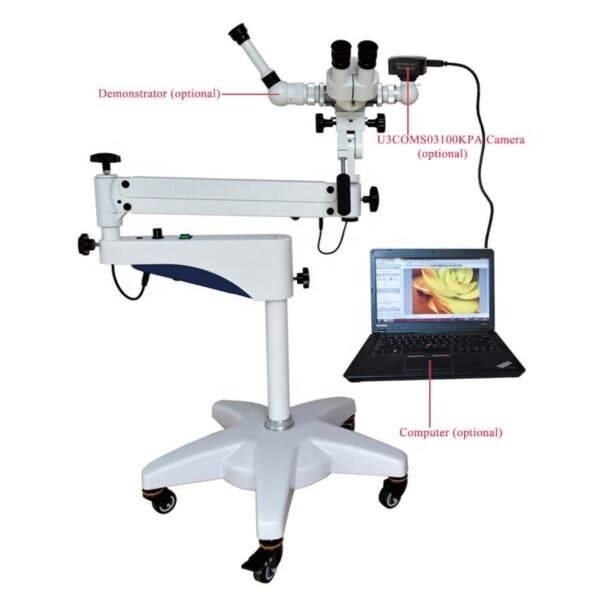

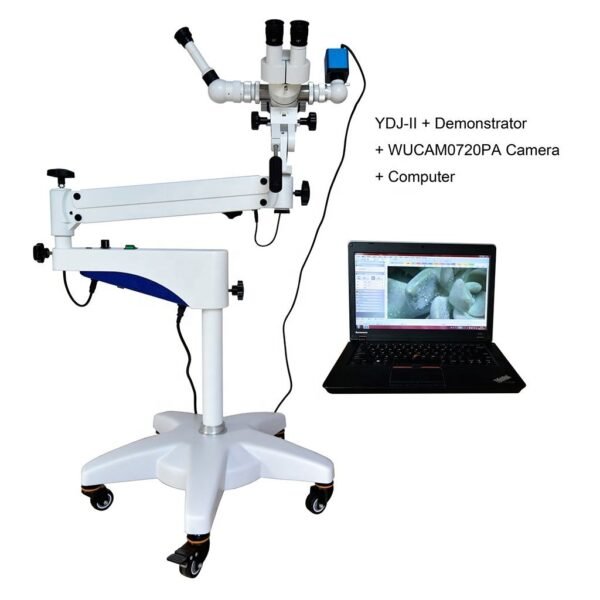

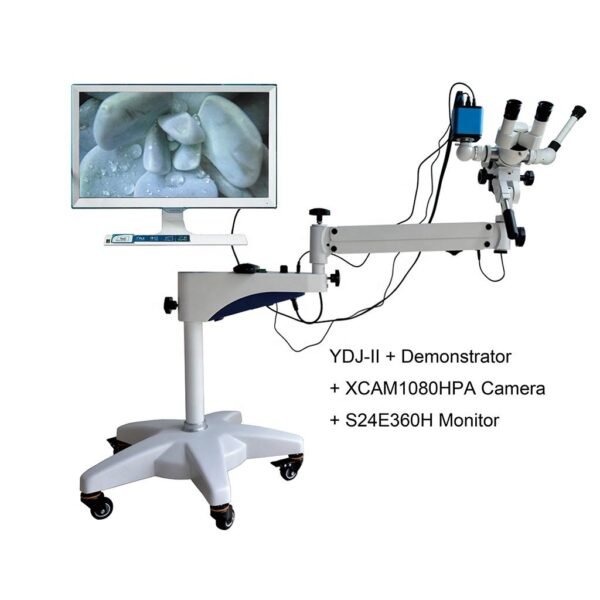

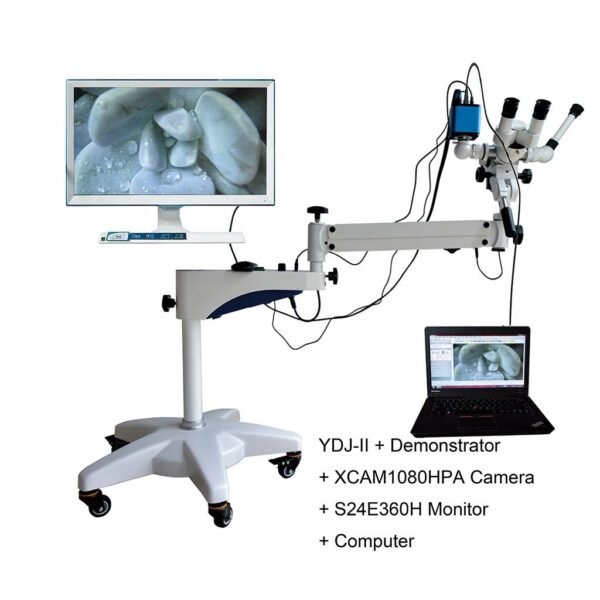

Optional parts	Teaching lens, camera (U3CMOS03100KPA, XCAM1080PHA, XCAM1080P2MPA, XCAM1080PHD, WUCAM0720PA, FHD2100, HD200), SLR camera connector, display (S24R352FHC, S24F350FH) C), large objective lens (F=230mm and F=280mm)

FAQ

1. Are you a manufacture or trader ?
—-We are a professional manufacture , we have our own produce team and sales team, we also provide one-stop service.
2. What’s your MOQ ?
—-For this product, MOQ is 1 unit.
3. How long is the warranty time ?
—-We supply 12 months warranty time ,during this time we will help you solve any problems.
4. Do you provide OEM/ODM Service ?
—-Yes, we provide this service to meet different requirements , different budget to all clients.
5. How are we going to install the equipment after purchasing ?
—-We will provide user manual comes with machine ,also professional installation video to help you .
6.What payment terms you support ?
—-We accept T/T, credit card ,Visa card, Paypal etc.
7. What is your delivery time ?
—-It depend on your qty,if we have it in stock ,we can ship in 3 days after receive deposit ,if we don’t have it in stock,normally production time is 7-10 working days .
8. Do you have CE and ISO certificate ?
—-Yes, most of our products have the CE and ISO certificate
