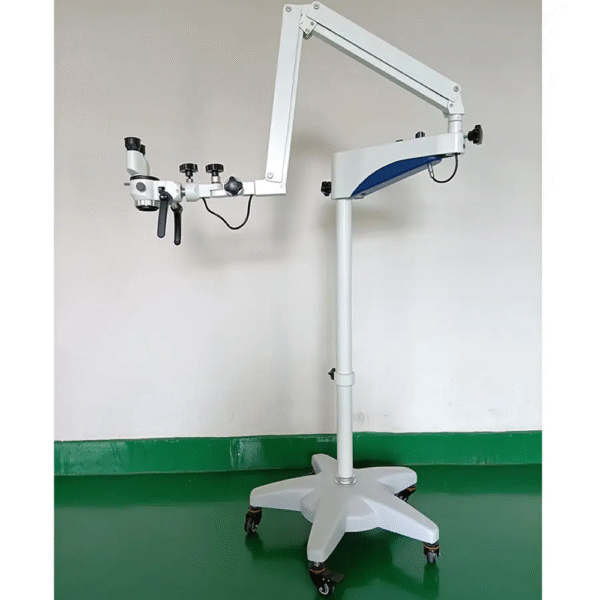

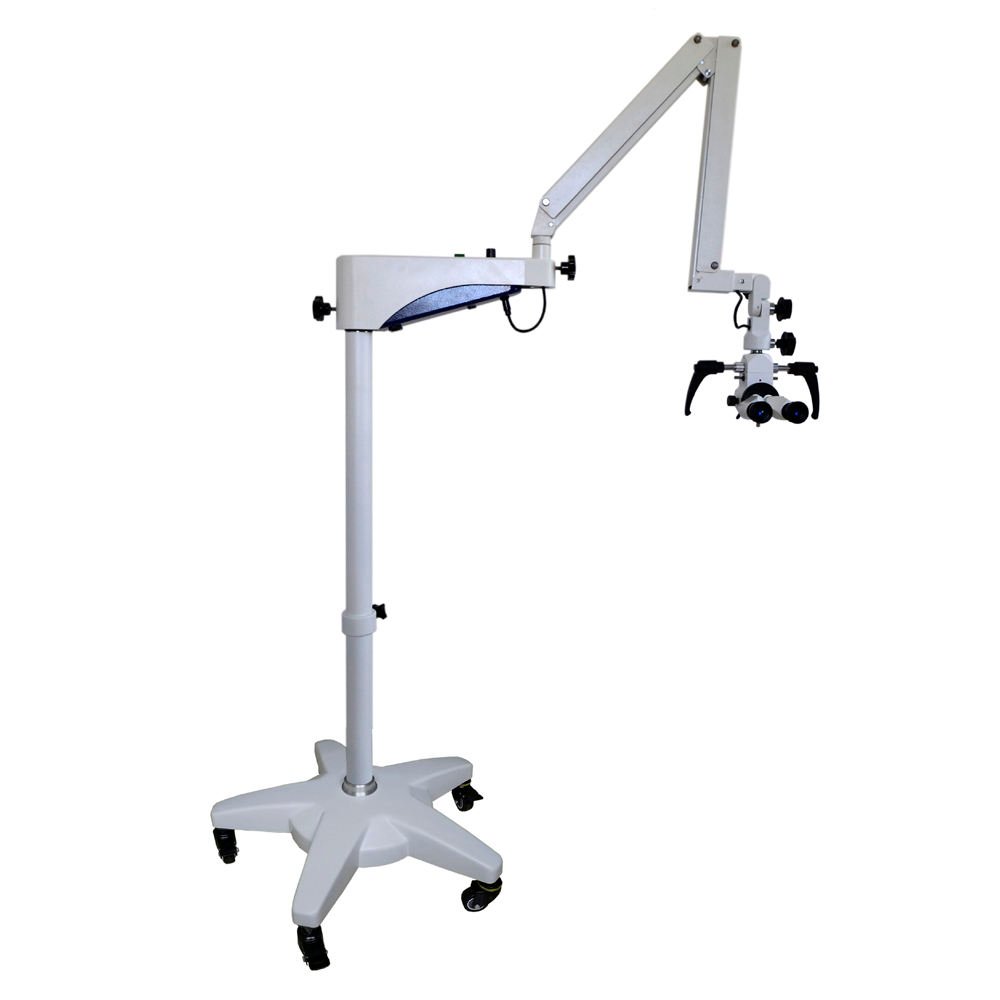

YSX101 OEM Operating Microscope Medical Surgical Operation Microscope
* Operation Microscopes using LEDlight source for coaxial illumination, featured for flexible handling and easy They can be used for micro-operation in ear-nose-throat, dental, ophthalmology, gynecology and surgery.
* 6X straight binocular observation lens, three-speed zoom [0.6x, 1x, 1.6x], with two objective lenses F=200mm and F=300mm, total magnification 3X-12X, built-in green and orange filters, Fine-tuning distance 10mm
Product Description
High-Performance Ophthalmic Surgical Microscope Medical Ent Operating Microscope
| Observation angle | Straight |
| Magnification of binocular | 6X |
| Interpupillary distance | 50mm-80mm |
| Diopter | ±5D |
| Focal length of objective | F=200mm and F=300mm two objectives |
| Magnification changer 3-step | 0.6X, 1X, 1.6X |
| Total magnification | 3X, 5X, 8X, 4.7X, 7.5X, 12X |
| Linear field | 60.8mm, 37.9mm, 23.6mm, 40.6mm, 25.3mm, 15.8mm |
| Fine focusing distance | 10mm |
| Illumination | Coaxial illumination with 10W LED lamp light source, brightness adjustable, illumination >30000lx |
| Filter | Build-in green and yellow filters |
| Floor stand | 2-part column fitted on the five-star base with casters |
| Balancing arm | 2-part arm with universal joints |
| Power supply input | AC100V-240V, 50HZ-60HZ |
| Power supply adapter | DC12V 3A, 36W |
| Optional accessories | Beamsplitter, Video camera adapter, Demonstrator, Camera (U3CMOS03100KPA, XCAM1080PHA, XCAM1080PHD, WUCAM0720PA, FHD2100, HD200), |
| Monitor (S24R352FHC, S24F350FHC), Objective F=250mm & F=400mm, Wall mount bracket, Monitor mount (GM112B, GM112W) |
Company information
FAQ
1. Are you a manufacture or trader ?
—-We are a professional manufacture , we have our own produce team and sales team, we also provide one-stop service.
2. What’s your MOQ ?
—-For this product, MOQ is 1 unit.
3. How long is the warranty time ?
—-We supply 12 months warranty time ,during this time we will help you solve any problems.
4. Do you provide OEM/ODM Service ?
—-Yes, we provide this service to meet different requirements , different budget to all clients.
5. How are we going to install the equipment after purchasing ?
—-We will provide user manual comes with machine ,also professional installation video to help you .
6.What payment terms you support ?
—-We accept T/T, credit card ,Visa card, Paypal etc.
7. What is your delivery time ?
—-It depend on your qty,if we have it in stock ,we can ship in 3 days after receive deposit ,if we don’t have it in stock,normally production time is 7-10 working days .
8. Do you have CE and ISO certificate ?
—-Yes, most of our products have the CE and ISO certificate
