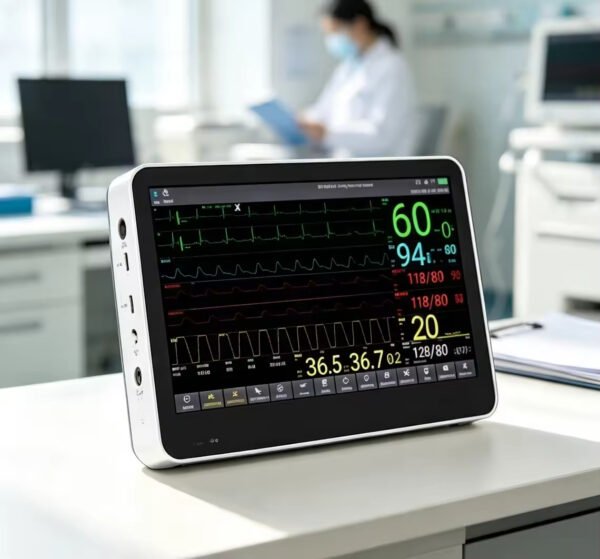

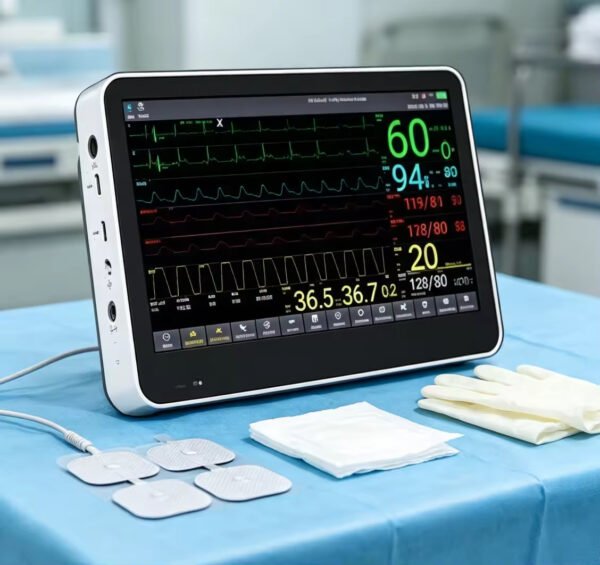

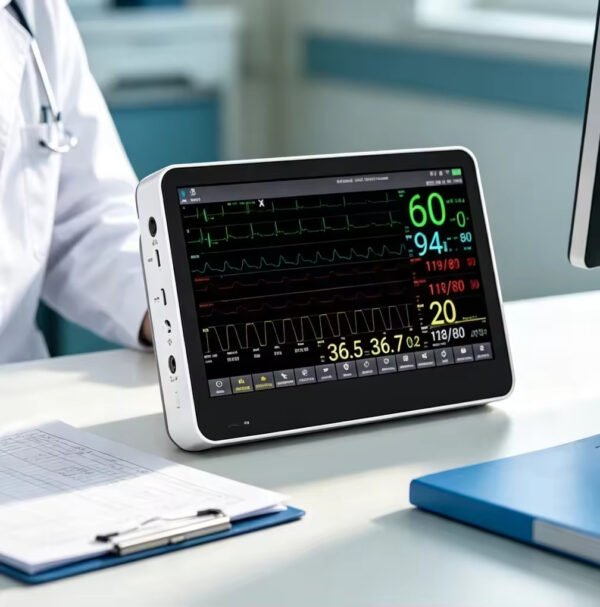

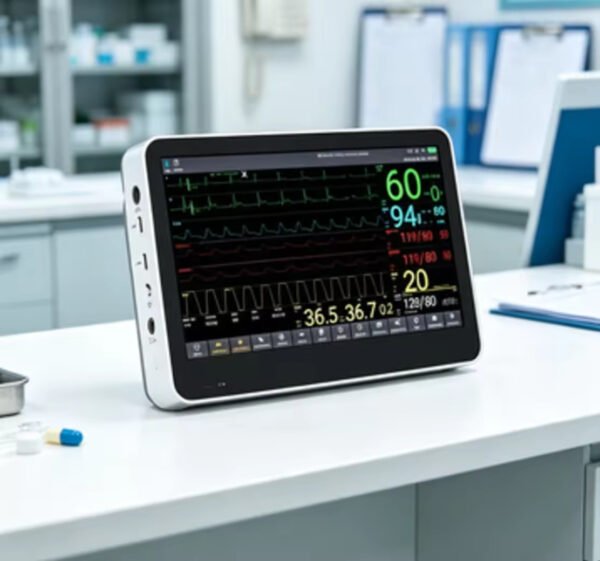

CMS8500 Portable Medical Patient Monitor Multi-parameter Patient Monitor

Product Description

Introduction
The monitor has abundant functions that can be used for clinical monitoring with adult, pediatric and neonate. Users may select different parameter configuration according to different requirements. The monitor, power supplied by 100V-240V～,50Hz/60Hz, adopts 14” color TFT LCD displaying real-time date and waveform. It can synchronously display ten-channel waveform and full monitoring parameters equipped with an optional 48mm thermal recorder. The monitor can be connected to the central monitoring system via wire or wireless network to form a network monitoring system.
This device can monitor such parameters as ECG, RESP, NIBP, SpO2, and dual-channel TEMP, etc. It integrates parameter measurement module, display and recorder in one device to form a compact and portable equipment. Its replaceable internal battery brings lot of convenient for patient moving.

Function
1)14″ high-definition touch screen design, easy and convenient to operate, elegant and concise in appearance.
2)Independent physiological and technical alarm function, convenient for medical staff to quickly know patient’s condition.
3)Adopt high-performance processor, stable, reliable and fast to process information.
4)Patient information can be rapidly entered, patient type (adult / neonate / pediatric) can be quickly switched, meets the requirements of different departments.
5)Abundant analysis functions: 23 arrhythmia, full-lead ST-segment and pacing analysis; multiple calculation functions (such as calculation of drug concentration, titration table, hemodynamics, ventilation, oxygenation, renal function, etc.).
6)With the functions of waveform freezing, holographic waveform storage and review.
7)Automatic data storage in case of power failure.
8)Built-in large-capacity detachable lithium battery, ensures uninterrupted monitoring.
9)Fanless design, ensures no noise and low power consumption during working.
10)Connect to Central Monitoring System developed by our company by WiFi / Wired, convenient to transmit patient’s real-time data.
11)Standby mode, be applied to clinical monitoring, avoids affecting patient’s rest, one-button switching, reduces the workload of medical staff.

Performance
(1)ECG
Lead type:
3-lead: I, II, III
5-lead: I, II, III, aVR, aVL, aVF, V
12-lead: I, II, III, aVR, aVL, aVF, V1,V2,V3,V4,V5,V6
Gain: 2.5 mm/mV, 5.0 mm/mV, 10 mm/mV, 20 mm/mV, 40 mm/mV
Scan speed: 6.25mm/s，12.5 mm/s, 25 mm/s, 50 mm/s
HR
Measurement and alarm range:
Adult: 15 ~ 300 bpm
Pediatric/neonate: 15 ~ 350 bpm
Resolution: 1 bpm
Accuracy: ± 1 % or ± 1 bpm, whichever is greater
ST-segment detection
Measurement and alarm range: – 2.0 mV ~ + 2.0 mV
Accuracy: – 0.8 mV ~ + 0.8 mV: ± 0.04 mV or ± 10 %, whichever is greater
Other range: unspecified
Arrhythmia analysis: 23 kinds
Pacemaker: yes
(2)RESP
Measurement mode: impedance
Respiration rate:
Measurement range: 0 rpm ~ 150 rpm
Resolution: 1 rpm
Accuracy: 7 ~ 150 rpm, ± 2 rpm or ± 2 %, whichever is greater;
0 ~ 6 rpm, unspecified
Apnea delay: 10 ~ 60 s
Scan speed: 6.25 mm/s, 12.5 mm/s, 25 mm/s, 50mm/s
(3)NIBP
Measurement mode: Oscillometry
Working mode: Manual/AUTO/Continuous/Order
Measurement interval in AUTO mode: 1 min, 2 min, 2.5 min, 3 min, 5 min, 10 min, 15 min, 20 min, 30 min, 1 h, 1.5 h, 2 h, 3 h, 4 h, 8 h
Measurement period in Continuous mode: 5 minutes
Static pressure Measurement range: 0mmHg ~ 300 mmHg（0.0kPa ~ 40kPa）
Resolution: 1 mmHg
Cuff pressure accuracy: ± 3 mmHg
Measurement accuracy:
Maximal mean deviation: ± 5 mmHg
Maximal standard deviation: 8 mmHg
Over-pressure protection:
Adult mode: 297 ± 3 mmHg
Pediatric mode: 260 ± 3 mmHg
Neonatal mode: 147 ± 3 mmHg
(4)SpO2
Measurement range: 0 % ~ 100 %
Resolution: 1 %
Accuracy: 70 % ~ 100 %, ± 2 %;
0 % ~ 69 %, unspecified
PR
Measurement and alarm range: 25 ~ 250 bpm
Accuracy: ± 2 bpm or ± 2 %, whichever is greater
(5)TEMP
Channel: dual-channel
Measurement range: 0 ~ 50 ℃
Resolution: 0.1 ℃
Accuracy: ± 0.1 ℃
(6)CO2
Measurement mode: mainstream or sidestream
CO2 measurement range: 0 ~ 150 mmHg
Accuracy:
0 ~ 40 mmHg: ± 2 mmHg
41 ~ 70 mmHg: ± 5 %
71 ~ 100 mmHg: ± 8 %
101 ~ 150 mmHg: ± 10 %
AwRR measurement range:
Sidestream: 2 ~ 120 rpm
Mainstream: 2 ~ 150 rpm
AwRR accuracy: ± 1 rpm
Apnea alarm: yes
(7)IBP
Channel: 2-channel（Expandable 4-channel）
Label: ART, PA, CVP, RAP, LAP, ICP, P1, P2
Measurement and alarm range: -50 ~ 300 mmHg
Resolution: 1 mmHg
Accuracy: ± 2 % or 1 mmHg, whichever is greater
(8)Power supply: 100V – 240 V ~ 50Hz/60 Hz（Adapter output：DC 9V）
(9)Safety class: class I, defibrillation-proof type CF applied part
(10)Waterproof degree: IPX2

Accessories
Category Accessory name
ECG lead cable 5-lead, American standard
ECG electrode adult, one packet(20 pcs)
SpO2 probe (integrated) Digital fingertip SpO2 probe for adult (CMS-N-SPO2 6P, 3M, yellow)
TEMP probe R25=2.252K TEMP probe, skin surface type, CMS-N-TEMP 2P, PVC, L=3M
NIBP cuff BP extension tube, L=3M
Adult cuff (25 ~ 35 cm)

Physical characteristic
Component Dimensions (l×w× h) Weight Remark
Host 351mm×234mm×60mm About 2.1kg Standard configuration (including battery), weight does not include recorder and accessories;

Optional configuration
No. Function name
1 Recorder module
2 CO2 module
3 IBP module
4 12-lead ECG
5 Central Monitoring System
