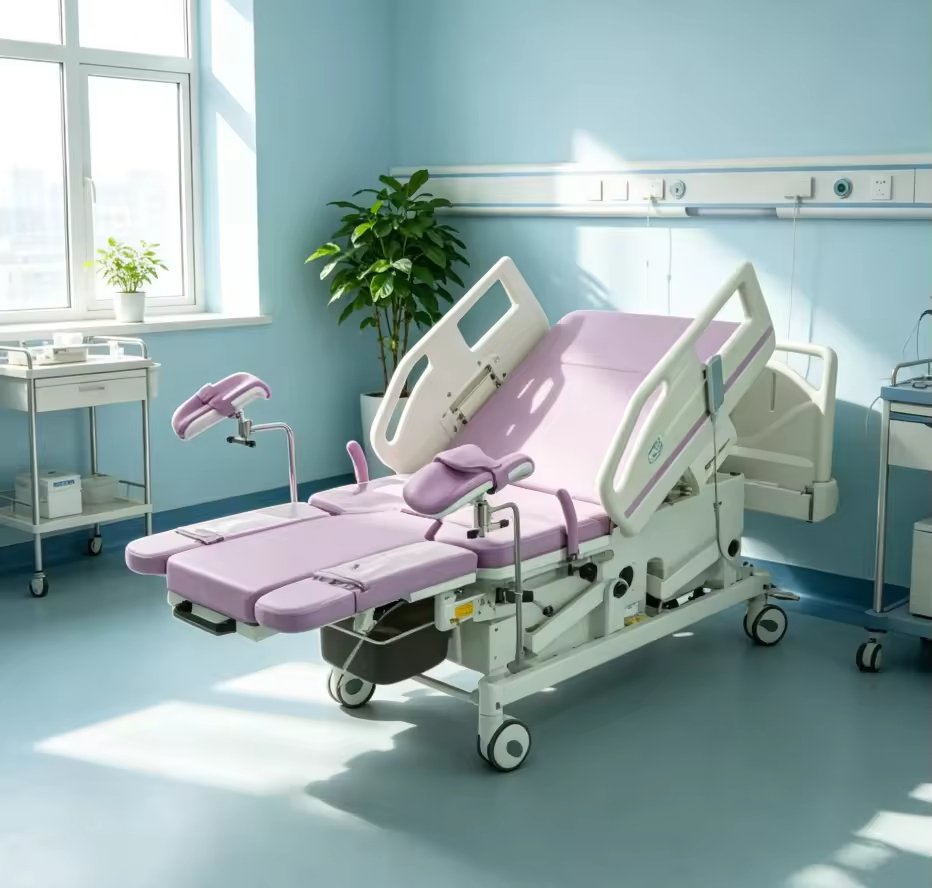

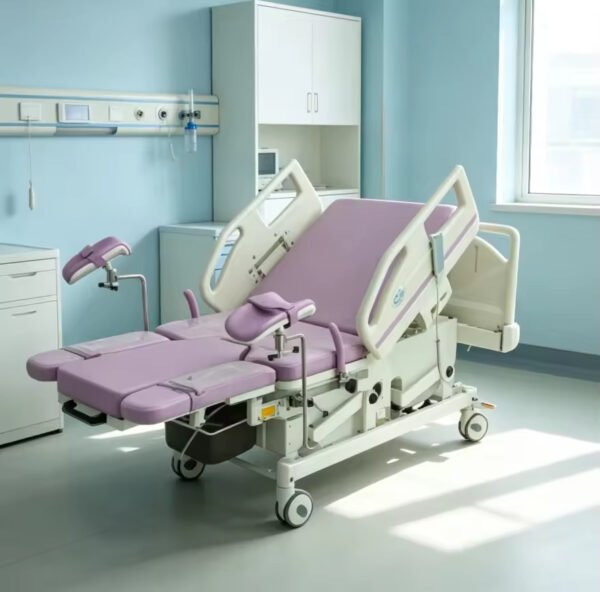

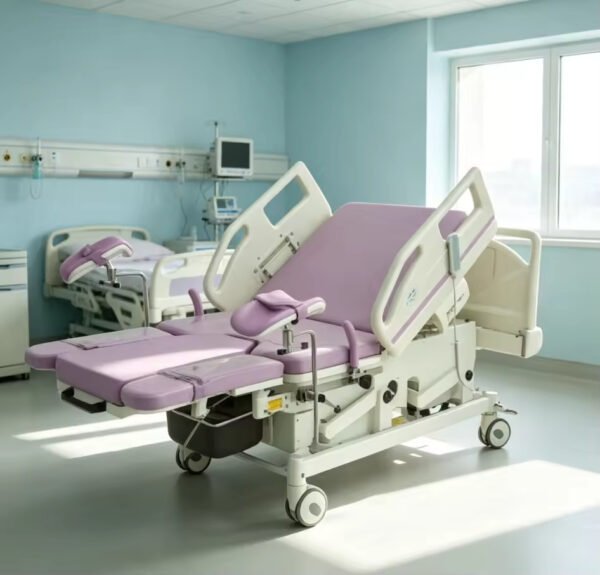

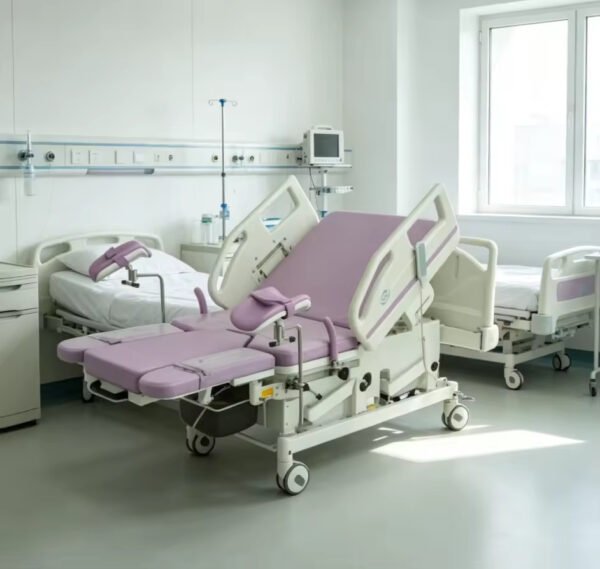

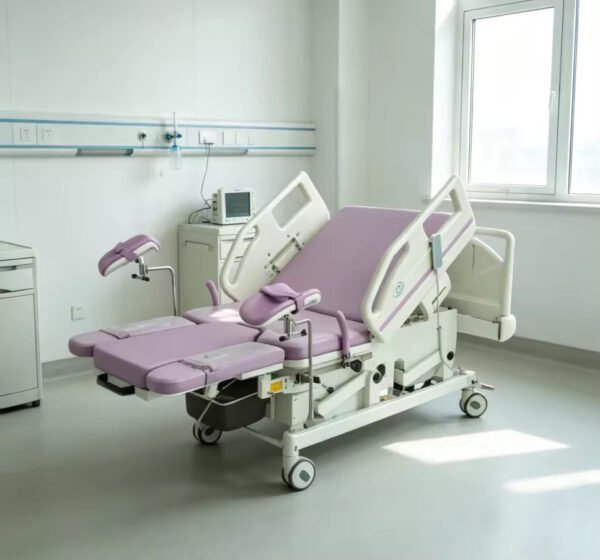

LDRP Electric Obstetric Bed Breathable Waterproof Mattress Adjustable Height for Labor Delivery Recovery Optional

一、Function：
The MDT-I integrated obstetric bed is suitable for mothers in all stages of labor,
delivery, and postpartum recovery. It has a fully automatic conversion function from
a hospital bed to a delivery table, providing full comfort for the mother during the
delivery process.。
1. The bed’s entire height, tilt, and backrest folding functions are electrically
controlled and operated with a single button.
2. A hidden waste box and a detachable auxiliary table are installed beneath the
bed, allowing for adjustments based on clinical needs.
3. The auxiliary table’s height is electrically adjustable, with a travel of 160mm
and can be safely stopped at any height.
4. Bed width: 800mm without side rails, 1000mm with side rails.
5. The headboard and left and right side rails are molded from high-strength
plastic, creating a beautiful, elegant appearance that can be easily removed or hidden.
The headboard is equipped with anti-collision wheels to effectively cushion against
collisions with obstacles during movement.
6. The side rails can be raised and lowered vertically, with a travel of 380mm,
freeing up space for operation.
7. Function buttons are located on the inside and outside of the side rails,
allowing operation by either the mother or medical staff. The inside of the side rails
features buttons for folding the back and seat panels, allowing mothers to adjust the
back and seat angles as needed for a comfortable position. The outside of the siderails
is equipped with buttons for all functions, including bed lift, backrest folding, seat
folding, forward and backward tilting, and assist platform lift. All buttons are
click-activated; release the button to stop the action. To prevent accidental
operation, a keyboard lock is included; once the patient’s position is adjusted, the
keyboard can be locked.
8. An optional foot switch is available.
9. The silent casters feature a central control system with a foot-operated brake and
a caster diameter of 150mm.
10. It features a head-up, foot-down function for easy delivery and a head-down,
foot-high function with a backward tilt angle of ≥12 degrees, positioning the
patient’s head below the center of the body’s blood circulation, allowing for emergency
rescue.
11. The mattress is made of multiple layers of low-rebound and egg-shaped foam for
excellent breathability. The cover is waterproof and washable. The thickness is 120mm.
12. The mother can reliably adjust the leg opening by pushing her feet firmly, without
hindering her from getting in and out of bed. The leg support allows for flexible leg
opening and angle adjustment. The leg support is adjustable 360° and can be used
interchangeably. The leg support is removable and can be hidden underneath. The leg
support is pneumatically operated, allowing for easy angle adjustment with a simple
pull of the handle.
13. The built-in power supply automatically switches to operating mode in the event
of a mains power outage.
二、 Main technical parameters
1. Bed length ≥ 1900mm.
2. Bed width ≥ 800mm, comfortable for pregnant women, and suitable for mother
and baby to sleep together.
3. Bed height adjustment: Maximum ≥ 950mm, minimum ≤ 670mm.
4. Backrest tilt angle ≥ 70 degrees.
5. Seat fold-up angle ≥ 25 degrees.
6. Bed tilt angle: Forward tilt ≥ 2 degrees, rearward tilt ≥ 12 degrees.
7. Assistance table lift: ≥ 160mm.
8. Maximum load capacity ≥ 150kg.
9. Assistance table dimensions: L*W 590*410
三、Basic Configuration
1. Mattress (1 set)
2. Siderails (Guardrails) (2 pieces)
3. Saline bottle holder (1 piece)
4. Drain hook (1 piece)
5. Electric wire hook (1 piece)
6. Leg support (2 pieces)
7. Handles (2 pieces)
8. Waste basin (1 piece)
