MX-DT04 Advanced Hospital Ceiling Pendant System Electrically-Powered Steel Metal Surgical Lifting Tower Enhanced Patient Care

Product Description

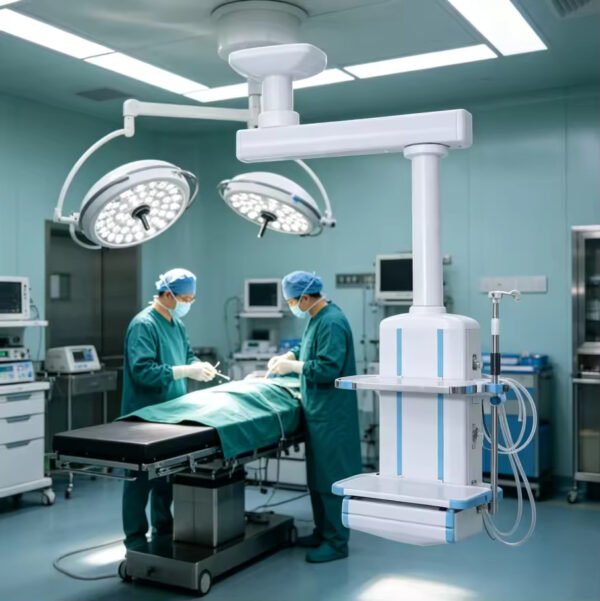

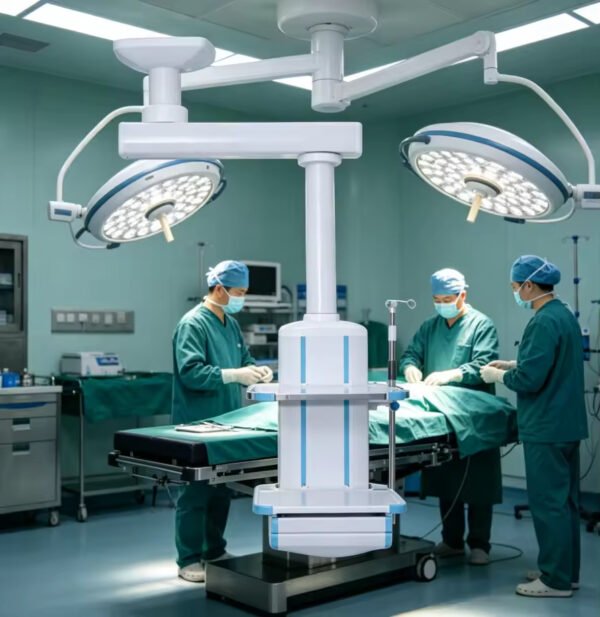

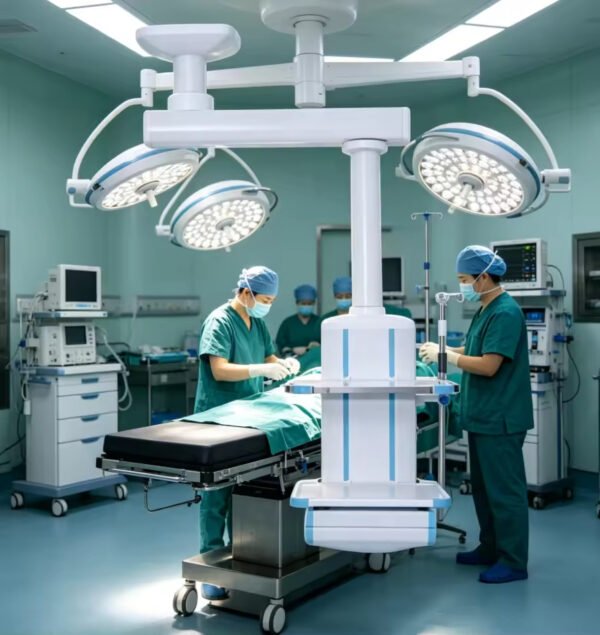

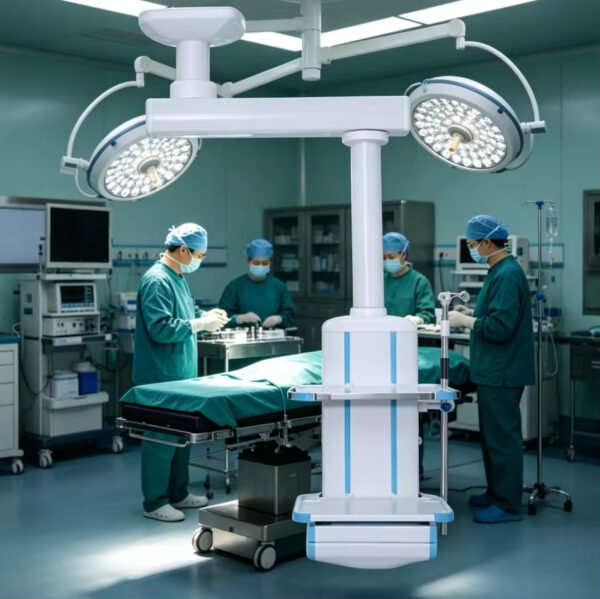

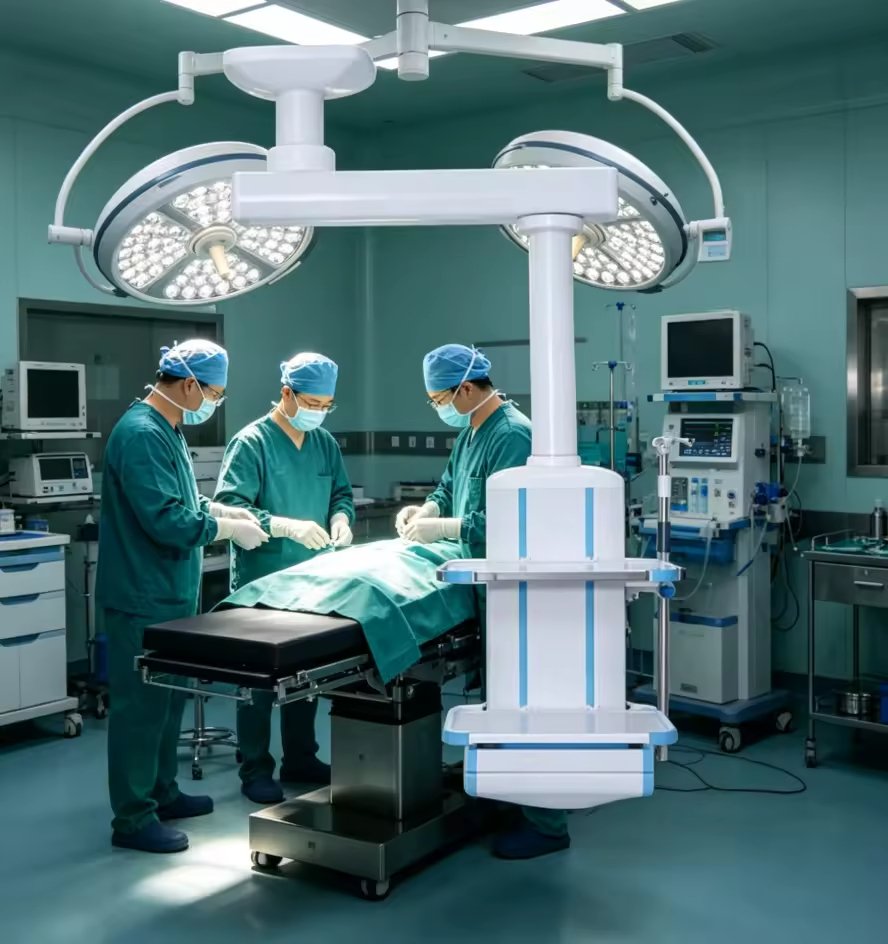

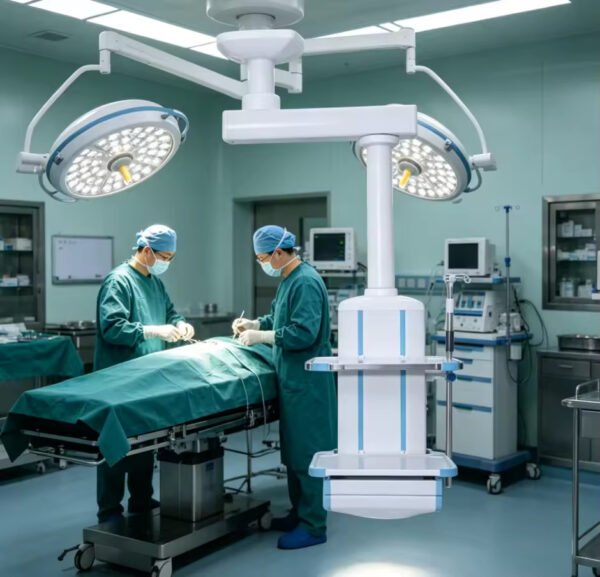

The MX-DT04 single-arm surgical tower features a simple and compact structure with user-friendly operation, making it an ideal workstation for hospitals for medical gases, power supplies, instrument platforms, infusion pump stands, and network output terminals. It is installed via ceiling suspension, capable of 360-degree rotation, and equipped with braking mechanisms to prevent drift. Its height ensures easy accessibility for medical staff, enabling efficient operation. This device is an indispensable medical equipment in modern hospitals.
■Main Technical Parameters
1．Power supply: AC 220V,50 Hz;
2．Rotating arm length: ≥950 mm; Range of motion (radius): ≥750 mm; (selectable according to user requirements)
3．The horizontal rotation angle is ≥340°, allowing simultaneous rotation of both the horizontal arm and the cabinet.
4．Net load capacity ≥200 kg;
5．Two workbenches: one with three-side guide rails for equipment trays (each tray has a maximum load capacity of ≥80 kg); adjustable height; rounded corner design for collision prevention.
6．The suspension-hanger type enclosure, with a length of ≥1000 mm, features a fully sealed design with no grooves or exposed metal components on the surface. It ensures separation of gas and electricity, as well as strong and weak electrical currents. The interfaces are compatible for simultaneous use.
7．Standard configuration of gas interface: National standard terminal, 2 oxygen valves, 2 negative pressure suction valves, and 2 compressed air valves; a. The interfaces vary in color and shape to prevent incorrect connection; b. With a plugging and unplugging cycle life exceeding 20,000 cycles.
8. Electrical sockets: 5 ten-pin power sockets, 220V,10A;
8．Isopotential grounding terminals: 2;
9．The countertop dimensions are 550*400*30 mm; there is one drawer with dimensions of 400*350*150 mm.
10．One rotatable infusion stand;
11．1 network interface, 1 telephone interface;
12．Platform winding machine: 1 unit
13．The main material employs high-strength aluminum alloy profiles; the design features a fully enclosed structure with smooth surfaces devoid of sharp edges or exposed screws. It is equipped with a rotation limit mechanism. The tower surface is treated with an environmentally friendly electrostatic powder coating process, resulting in a semi-matte finish that prevents glare, offers UV protection, and provides corrosion resistance while facilitating cleaning.
14. Communication interfaces, video interfaces, and other equipment can be installed as required. The ceiling-mounted design ensures stable and secure installation.
