MXDQ-1 Steel Manual Medical Lifting Tower CE Certified Comprehensive Ceiling Mounted Hospital ICU Surgical Equipment Pendant

Product Description

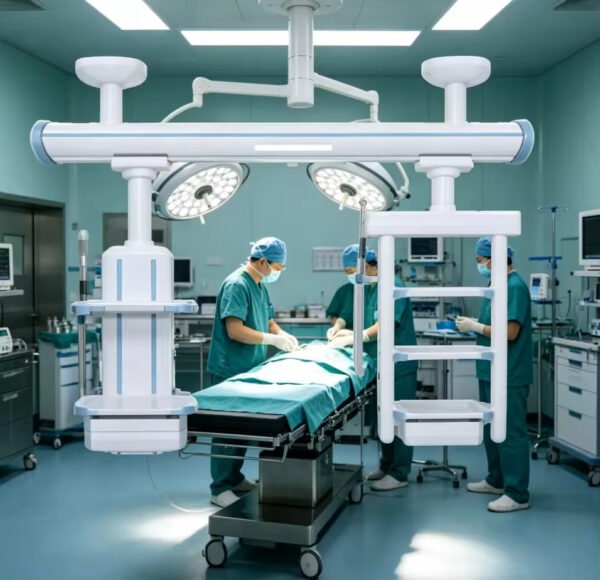

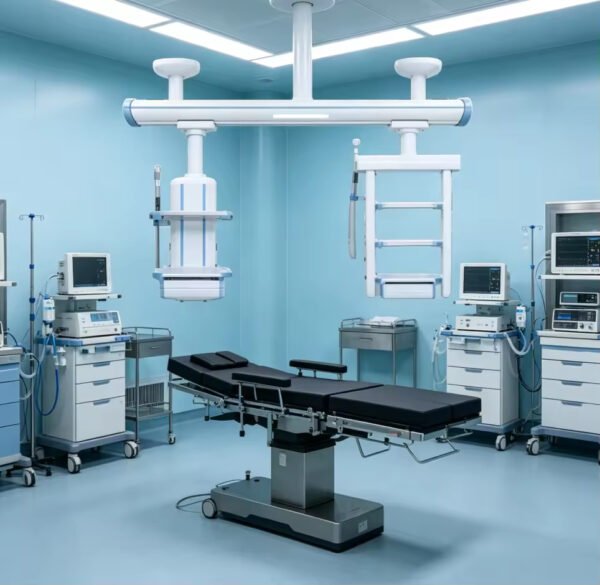

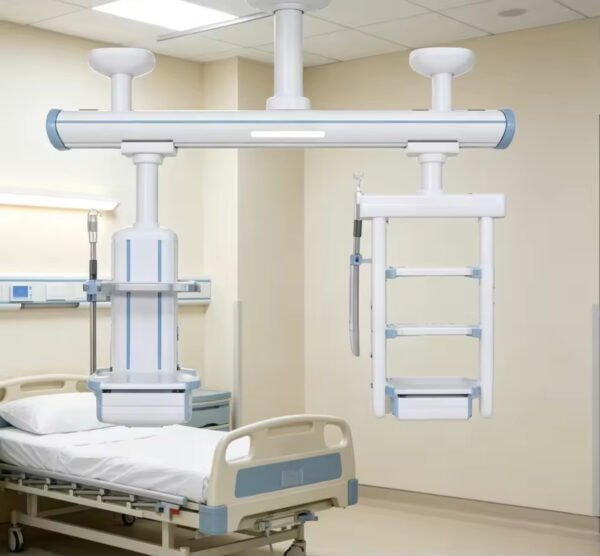

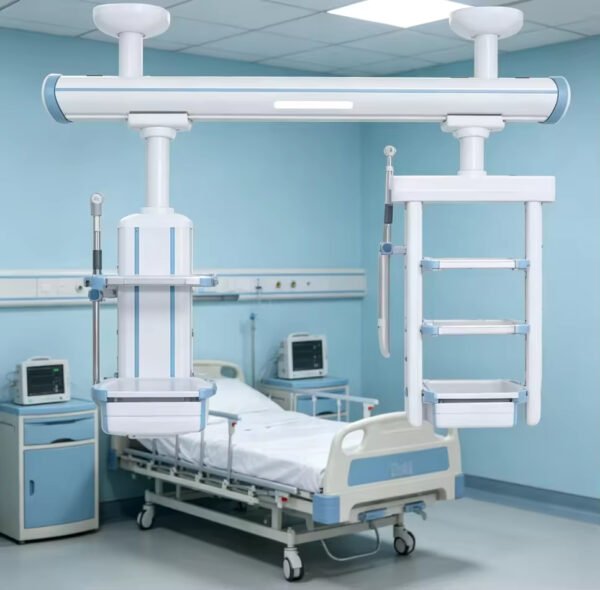

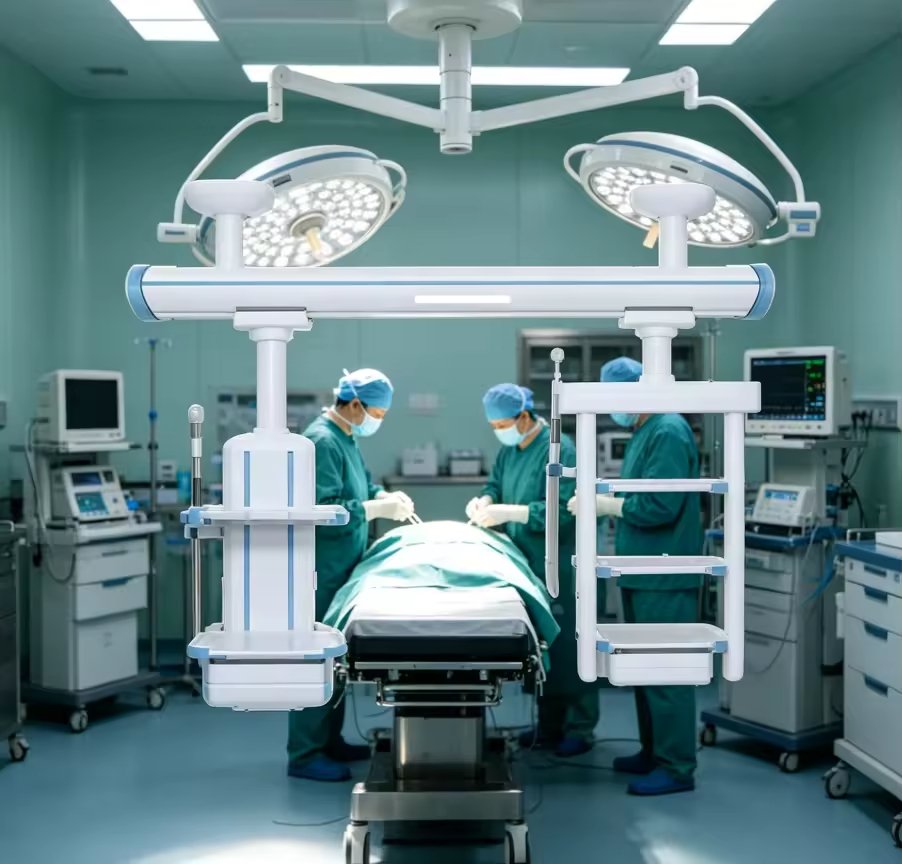

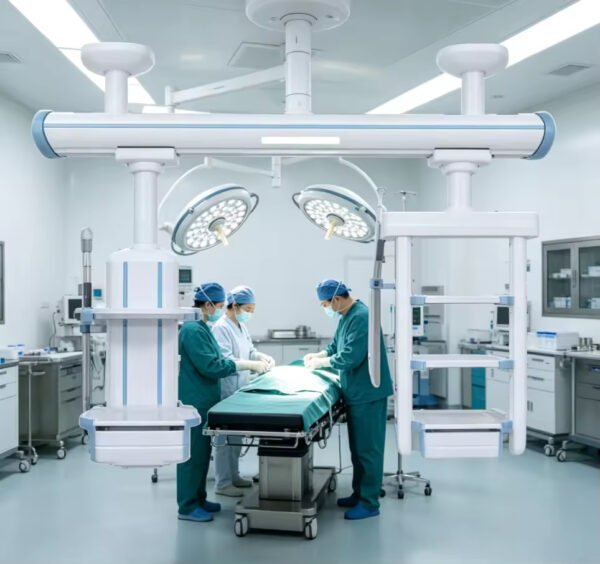

The MXDQ-I ICU Beam Suspension Bridge is designed for use in hospital ICU wards and serves as an essential medical rescue auxiliary device in modern intensive care units. It primarily consists of a bridge frame, a dry section, and a wet section, with its distinctive feature being a rational separation structure between the dry and wet zones. The wet zone is equipped with a flexibly adjustable infusion stand. Both dry and wet zones feature height-adjustable instrument platforms, along with dedicated installations for oxygen supply, air circulation, suction systems, power supply, network output terminals, and infusion pump holders. Additionally, various supplementary systems can be selected according to hospital requirements.
Main technical parameters:
1. Operating power supply: AC 220V,50Hz; Input power: 6 KVA;
2. The bridge body is approximately 2600 mm in length (actual dimensions subject to on-site measurement by the user); Lighting section (LED): one set for nighttime illumination.
3. The main material employs high-strength aluminum alloy profiles; the design is fully enclosed with smooth surfaces devoid of sharp corners or exposed screws. The tower surface is coated with an eco-friendly electrostatic powder coating, featuring a semi-matte finish that prevents glare, offers UV protection, and resists corrosion while facilitating cleaning. Communication interfaces, video interfaces, and other equipment can be installed as required. The ceiling-mounted design ensures stability and durability.
4. Wet zone: Net load capacity ≥200 kg;
a. Two worktops: each equipped with three-side guide rails and one equipment tray (maximum load capacity ≥80 kg per tray; adjustable height). Features rounded corner anti-collision design. Dimensions: (550*400 mm). One drawer with dimensions of 400*350*150 mm.
b. Column-mounted cabinet with a length of ≥950 mm, featuring a fully sealed design with no grooves or exposed metal parts on the surface. It ensures separation of pneumatic and electrical systems, as well as strong and weak electrical circuits. Multiple interfaces can be used simultaneously.
c. Standard configuration of gas interfaces: one national standard terminal, two oxygen valves, two negative pressure suction valves, and two compressed air valves; the interfaces vary in color and shape to prevent incorrect connection; withstand over 20,000 insertion and removal cycles.
d. Electrical socket: 10-pin, 5 outlets, 220V,10A;
e. Isopotential grounding terminals: 2; Rotatable infusion assembly rack: 1; Platform winding machine: 1; Network interface: 1; Telephone interface: 1;
f. Can be horizontally moved left and right by 400 mm, equipped with a rotation limit device; the box rotation angle is ≥340°
5. Dry zone: Net load capacity ≥200 kg;
a. Bilateral guide rail equipment trays: 3 units (each tray has a maximum load capacity of ≥80 kg; height adjustable). Features rounded corner anti-collision design. Dimensions: (550*400 mm); includes 1 drawer measuring 400*350*150 mm.
b. Column-mounted cabinet with a length of ≥1200 mm, featuring a fully sealed design with no grooves or exposed metal parts on the surface. It ensures separation of pneumatic and electrical systems, as well as strong and weak electrical circuits. Multiple interfaces can be used simultaneously.
c. Standard configuration of gas interfaces: one national standard terminal, two oxygen valves, two negative pressure suction valves, and two compressed air valves. The interfaces feature distinct colors and shapes to prevent incorrect connections, with a maximum insertion and removal cycle exceeding 20,000 times.
d. Electrical socket: 5-pin, 8 outlets, 220V,10A;
e. Equal potential grounding terminals: 2; platform winding machine: 1; network interface: 1; telephone interface: 1;
f. Can be horizontally moved left and right by 400 mm, equipped with a rotation limit device; the box rotation angle is ≥340°
