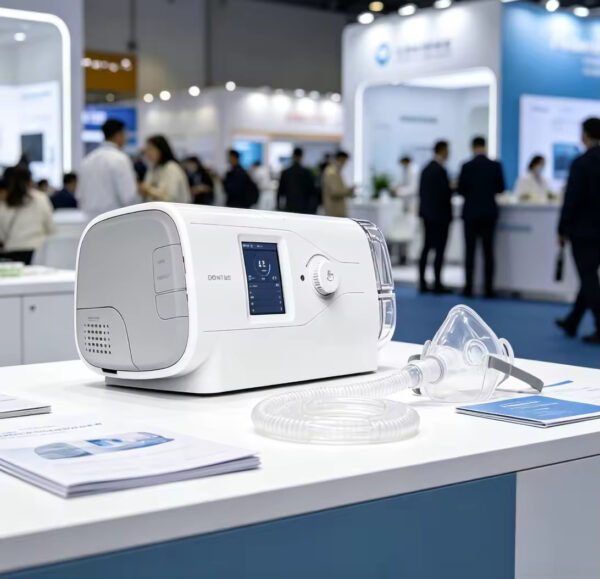

R100BP Bilevel Positive Airway Pressure Devices CPAP IBPAP Treatment of Obstructive Sleep Apnoea OSA

Product Description

Introduction

The device is used to relieve snoring, hypopnea and sleep apnea of patients (weight: over 30 kg) during sleep, so as to achieve adjuvant therapy, it can be used in family, clinic and hospital.

It has exquisite and compact structure design and is easy to carry. It features friendly human-computer interaction, simple function operation, easy to use.

Its main functions include:three therapy modes (CPAP, BILEVEL,IBPAP), real-time therapy information display, data storage, breathing gas warming and humidifying, USB data transmission, real-time clock.



Product Functions

1)Smart start: after identifying the wearing status of the mask, it can automatically start / stop the therapy.

2)Event detection: automatically detect the breathing events, such as leak, hypoventilation, apnea and snoring index.

3)Auto switch: automatically trigger and switch inspiratory and expiratory pressure based on the breathing status.

4)Adjustable parameters: the parameters can be set by users, such as Ramp time, humidity Level (6 levels), rise time and trigger sensitivity.

5)Leak compensation: support the automatic leak compensation within a range.

6)Data storage: support multi-dimensional data storage and check function, such as respiratory events, treatment data.

7)Large screen display: display the real-time parameters and detailed therapy data.

8)Three therapy modes (CPAP, BILEVEL,IBPAP).



Performance

Parameter Range

Operating Pressure CPAP：4 cmH2O～20 cmH2O

BILEVEL、IBPAP：4 cmH2O～25 cmH2O

Accuracy：± (2 % of the full scale reading

+4 %of the actual reading)

Leakage flow 0 L/min～200 L/min

Minute ventilation volume 0 L/min～30 L/min

Tidal volume 0 mL～4000 mL

inspiratory time 0.1 s～4.0 s

inspiratory/respiratory ratio 1：50～2：1

respiratory rate 0 bpm～50 bpm

Ramp Time 0 min～45 min

SpO2 Measurement 0～100 %

PR Measurement 30 bpm～250 bpm

Noise normal operation (including humidifier) noise≤30 dB

Power 100 V-240 V~,50 Hz/60 Hz,1.0 A-1.5 A

Accessories

Breathing tube (Breathing circuit)

Breathing tubing (Breathing Circuit) specification

Micro SD Card

SpO2 probe (Optional)

Mask

Mask specification

Power adapter

Cord set

Air Inlet Filter Cotton

Portable bag

User Manual



Physical Specification

Dimensions： 275*170*145 mm

Breathing tube：Soft plastic, length is 1.8 m, outlet complies with ISO 5356-1 22 mm conical joint

Weight（device and cleanable humidifier）：1600 g

Work Environment：

a）Operating Temperature：+5 ℃～+40 ℃

b）Relative Humidity：10 %～95 %, non-condensing

c）Atmospheric Range (non-condensing)：700 hPa～1060 hPa
