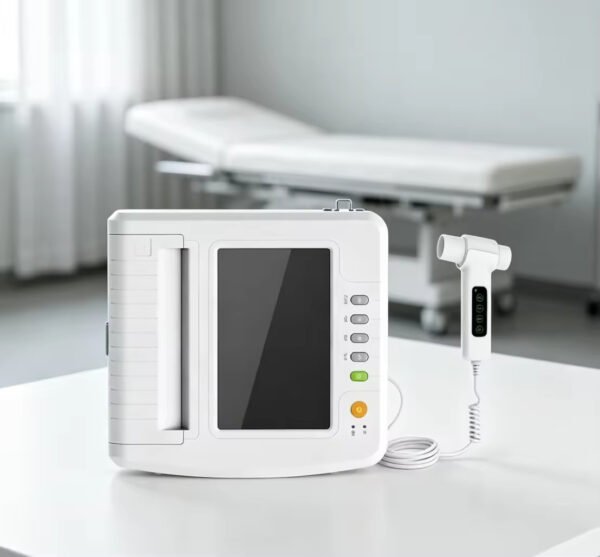

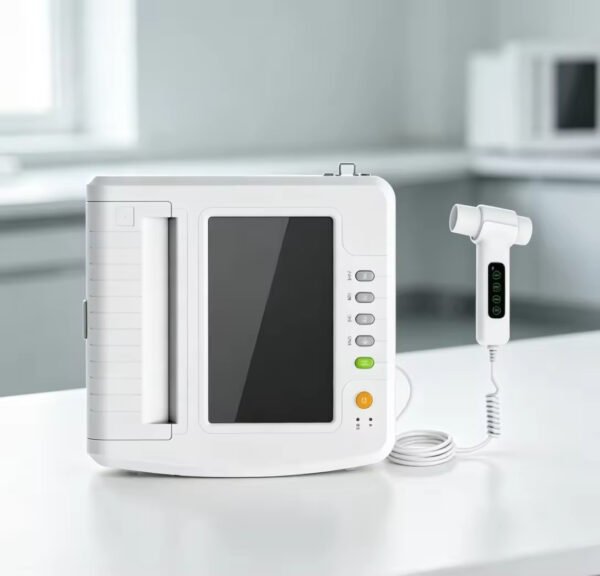

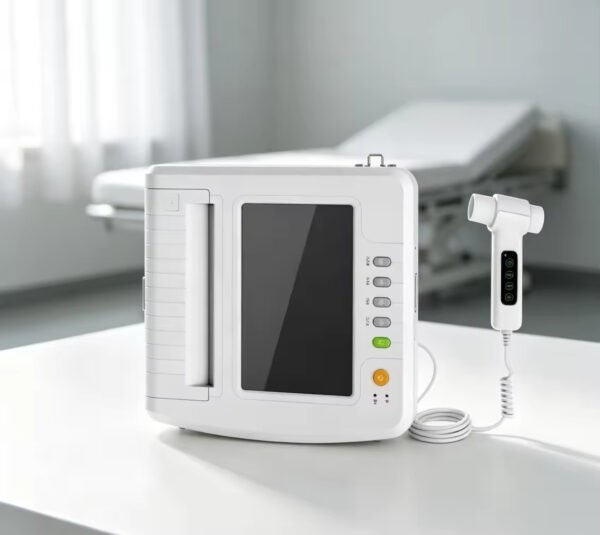

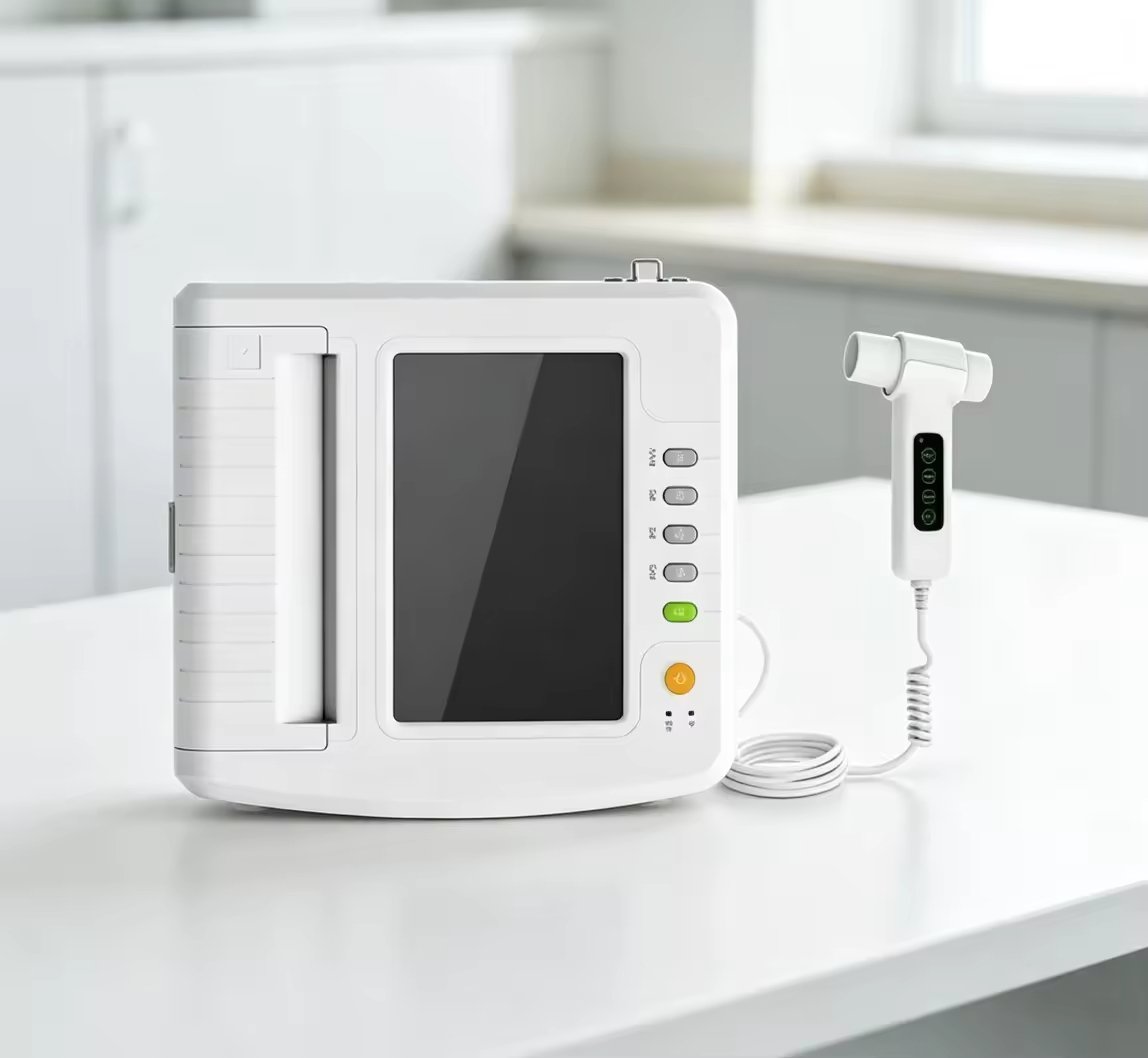

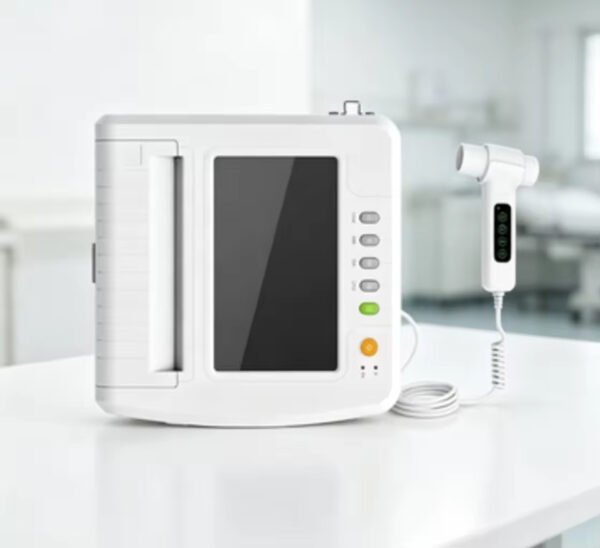

SP100B Digital Medical Spirometer Lung Function Testing Device -

Product Description

Introduction
The Spirometer is a portable device for testing pulmonary function, it adopts differential pressure acquisition principle to measure over 100 parameters related to FVC, VC, MVV and MV functions. It can be used in many scenarios, such as hospital, clinic, family, MVV and provocation test before / after medication, etc. which can provide the test results of pulmonary function for the users and the basis for the medical staff to make diagnosis.

Function
1) Differential pressure detection technology, with a professional lung function software, which can measure over 100 parameters related to FVC, VC, MVV and MV functions.
2) Measure inspiratory and expiratory parameters, real-time curve display.
3) BTPS correction function, measure temperature, humidity and barometric pressure automatically.
4) Quality control function, automatic QC rating.
5) Calibration control function: volume calibration, three flows verification.
6) Display the optimal value from many measurements.
7) The tester condition can be reflected by the ratio of the measured value and the predicted value.
8) Flow-volume and volume-time curve
9) Data memory, delete and information review functions.
10) Trend chart display.
11) Prompt functions for over-limit of volume and flow.
12) Rechargeable lithium battery, with charging prompt.
13) Battery power indication.
14) Built-in multiple predicted values.
15) Support bronchial dilation / provocation test.
16) Pulmonary function assessment.
17) Follow-up questionnaires function.
18) Patient information can be entered, managed and queried.
19) The test report can be printed and output by the built-in 210mm thermal printer.
20) The external printer can be connected to print and output the test report.
21) 10.1″ capacitive touch screen.
22) Wi-Fi function.
23) Built-in ID card reader (optional).

Performance
● Display mode: 10.1″ color LCD
● Display resolution: 1280 * 800
● Volume range: 0 L ~ 10 L (BTPS)
● Volume accuracy: ± 3 % or ± 0.05 L (whichever is greater)
● Flow range: 0 L/s ~ 16 L/s (BTPS)
● Flow accuracy: ± 5 % or ± 0.17 L /s (whichever is greater)
● Power consumption: P ≤ 150 V·A
● Power supply: DC 14.8 V rechargeable lithium battery or AC220V 50Hz
● Safety class: class I or internally powered equipment, type BF applied part
Accessories
● A pulmonary function probe
● A User Manual
● 100 mouthpieces (round: 50, flat: 50)
● A cord set
● A recording paper
● An earth line
● A nose clip (optional)

Physical characteristic
Dimension: 340 mm (L) × 320 mm (W) × 86 mm (H)
Weight: about 4000 g

FAQ

1. Are you a manufacture or trader ?
—-We are a professional manufacture , we have our own produce team and sales team, we also provide one-stop service.
2. What’s your MOQ ?
—-For this product, MOQ is 1 unit.
3. How long is the warranty time ?
—-We supply 12 months warranty time ,during this time we will help you solve any problems.
4. Do you provide OEM/ODM Service ?
—-Yes, we provide this service to meet different requirements , different budget to all clients.
5. How are we going to install the equipment after purchasing ?
—-We will provide user manual comes with machine ,also professional installation video to help you .
6.What payment terms you support ?
—-We accept T/T, credit card ,Visa card, Paypal etc.
7. What is your delivery time ?
—-It depend on your qty,if we have it in stock ,we can ship in 3 days after receive deposit ,if we don’t have it in stock,normally production time is 7-10 working days .
8. Do you have CE and ISO certificate ?
—-Yes, most of our products have the CE and ISO certificate
