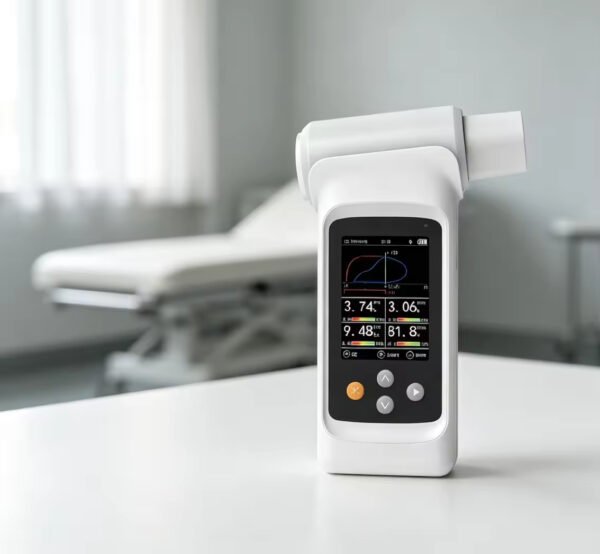

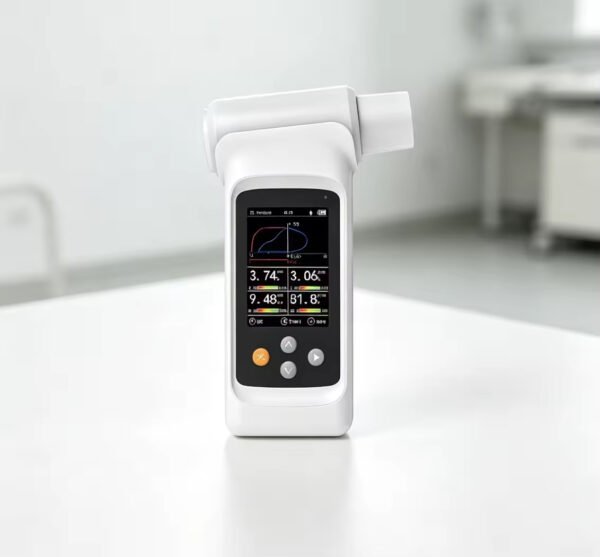

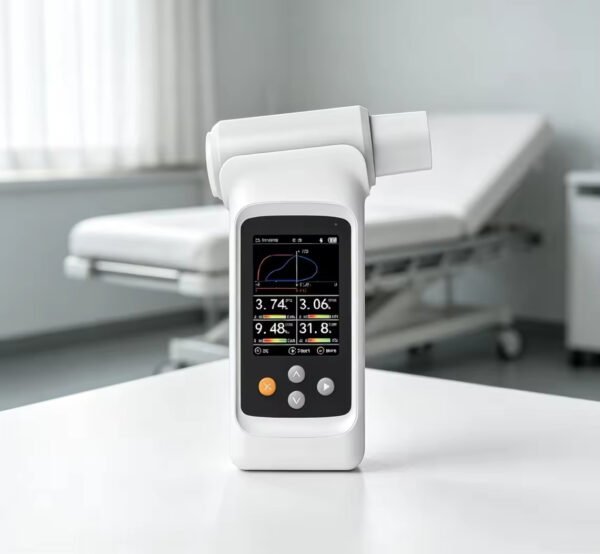

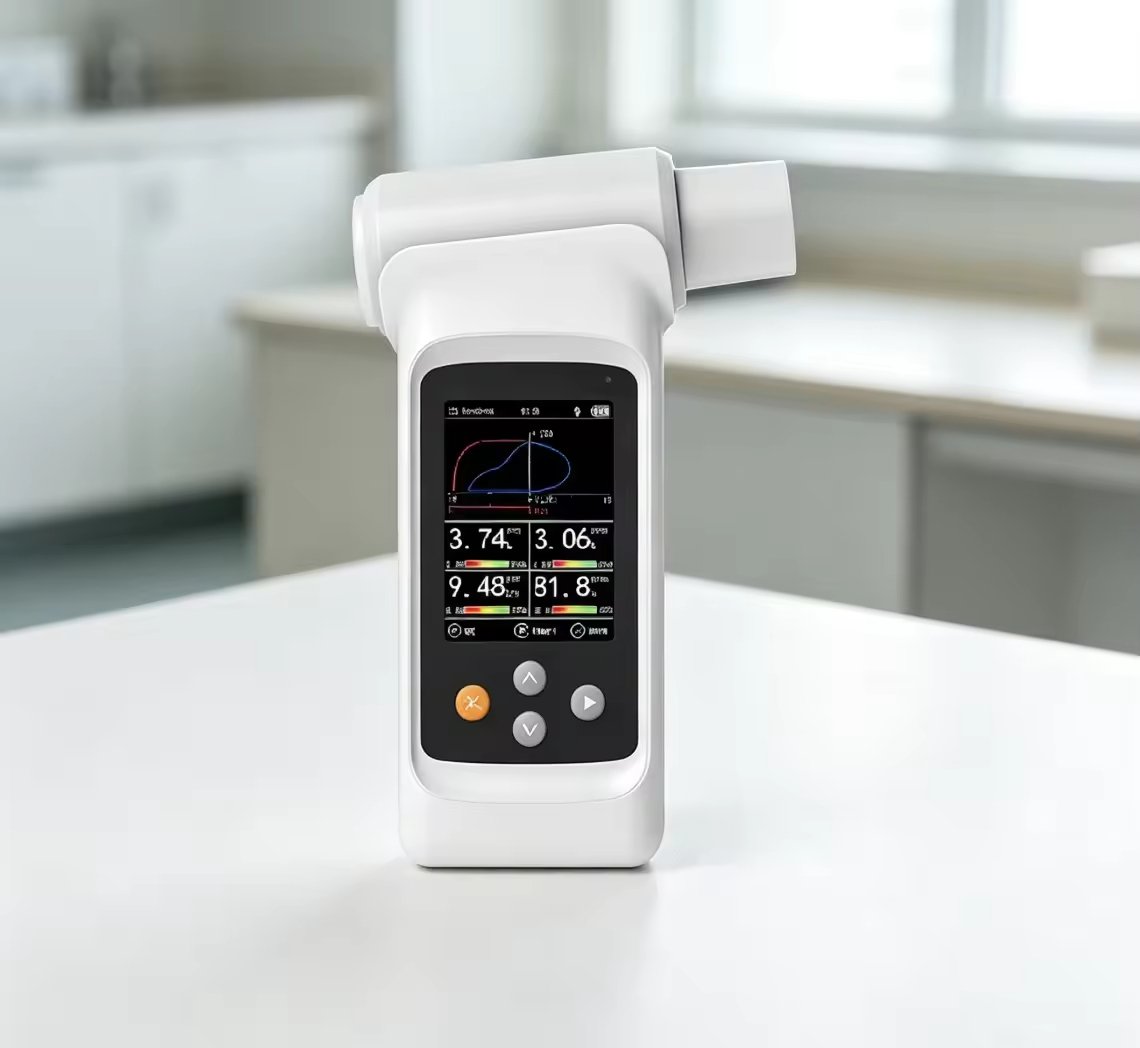

SP90 Handheld Lung Function Testing Device Pulmonary Function Analyzer Medical Spirometer Espirometro -

Product Description

Introduction
The Spirometer is a hand-held device for testing pulmonary function, which can be used to detect the patient’s respiratory function status. The device adopts differential pressure acquisition principle to measure parameters related to FVC, SVC, MVV and MV. It displays measurement results and respiratory waveform by the TFT HD screen, with data upload function, convenient for CLOUD management. It is applicable for diagnosis and therapeutic evaluation of lung diseases (such as asthma, COPD, pulmonary fibrosis and cough, etc.), routine physical examination, etc. It can be used in many scenarios, such as respiratory medicine, thoracic, anesthesiology, surgery, prevention and control institutions of occupational disease, physical examination institutions, etc.

Function
1)Measure and display the test items related to FVC, SVC, MVV and MV.
2)Display the respiratory waveform measured, use it with the master device to realize real-time test
3)With management functions of user information and case data.
4)Built-in multiple predicted values, the ratio of the measured value and the predicted value can be displayed.
5)BTPS correction function, measure environment parameters automatically.
6)Support bronchial test.
7)Voice prompt function.
8)With calibration and verification functions, ensure the test accuracy.
9)Data transmission: Bluetooth, USB data cable.
10)One-button test function.
11)Rechargeable lithium battery, battery power indication.

Performance
Volume range: 0 ~ 10 L
Flow range: ± 16 L/s
Volume accuracy: ± 3 % or ± 0.05 L (whichever is greater)
Flow accuracy: ± 5 % or ± 0.17 L /s (whichever is greater)

Accessories
●A User Manual
●A nose clip
●A mouthpiece (disposable)
●A USB data cable
●A power adapter (optional)
●PC software

Physical characteristic
Dimension: 143 mm (L) × 64 mm (W) × 41 mm (H)
Weight: 220 g

FAQ

1. Are you a manufacture or trader ?
—-We are a professional manufacture , we have our own produce team and sales team, we also provide one-stop service.
2. What’s your MOQ ?
—-For this product, MOQ is 1 unit.
3. How long is the warranty time ?
—-We supply 12 months warranty time ,during this time we will help you solve any problems.
4. Do you provide OEM/ODM Service ?
—-Yes, we provide this service to meet different requirements , different budget to all clients.
5. How are we going to install the equipment after purchasing ?
—-We will provide user manual comes with machine ,also professional installation video to help you .
6.What payment terms you support ?
—-We accept T/T, credit card ,Visa card, Paypal etc.
7. What is your delivery time ?
—-It depend on your qty,if we have it in stock ,we can ship in 3 days after receive deposit ,if we don’t have it in stock,normally production time is 7-10 working days .
8. Do you have CE and ISO certificate ?
—-Yes, most of our products have the CE and ISO certificate
